Description

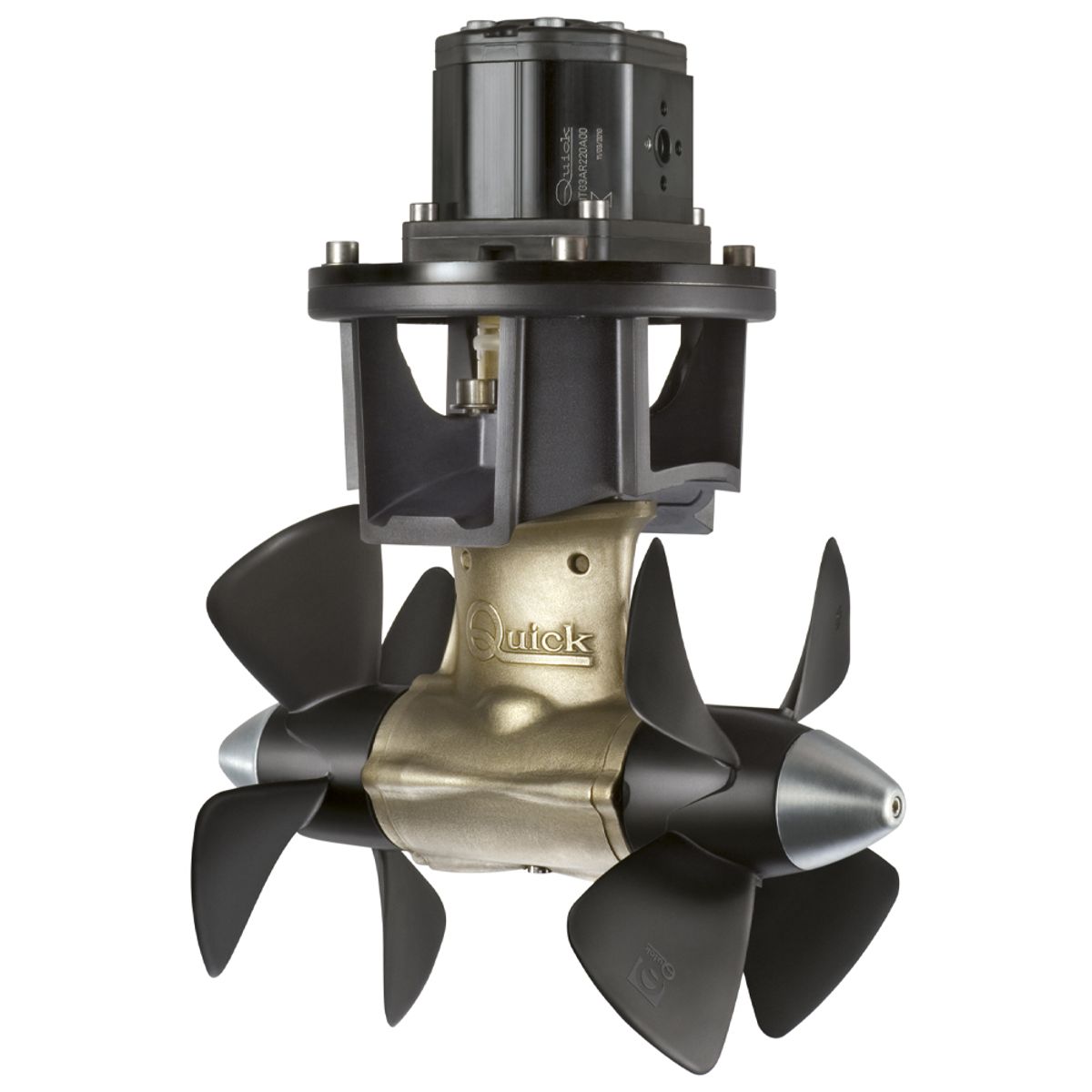

Quick BTH 300-300 hydraulic thruster recommended for boats 22 to 36 meters (72-118 ft) in length. This model has a double propeller made in sturdy composite material (BTH 300-400 NIBRAL) and a bronze gearbox. It is equipped with an elastic coupling and has a zinc anode independent from the gearbox – making it easily replaceable.
Specs:
• Model: BTH 300-300
• Number of propellers: Double propellers
• Tunnel diameter: 300mm (11-13/16″)
• Motor type: Gear-type motor
• Motor power: 22 cc (1.34″³)
• Weight: 27.6kg (59.96lb)
• Flow rate: 60.0 litres/minute (15.9 US GPM)
• Pression: 225 bar (3260 psi)
• Hydraulic power absorbed: 22.5 kw (30.6 hp)
• Thrust: 300 Kgf (660 lbs)
Product contents:
• Hydraulic thruster
• Drill templete
• O-ring (for assembly)
• User’s manual
• Conditions of warranty
Weight – 27.6
SKU – Q-BTHY3003009
Product Type – Boat Control > Thrusters > Thrusters
