Description

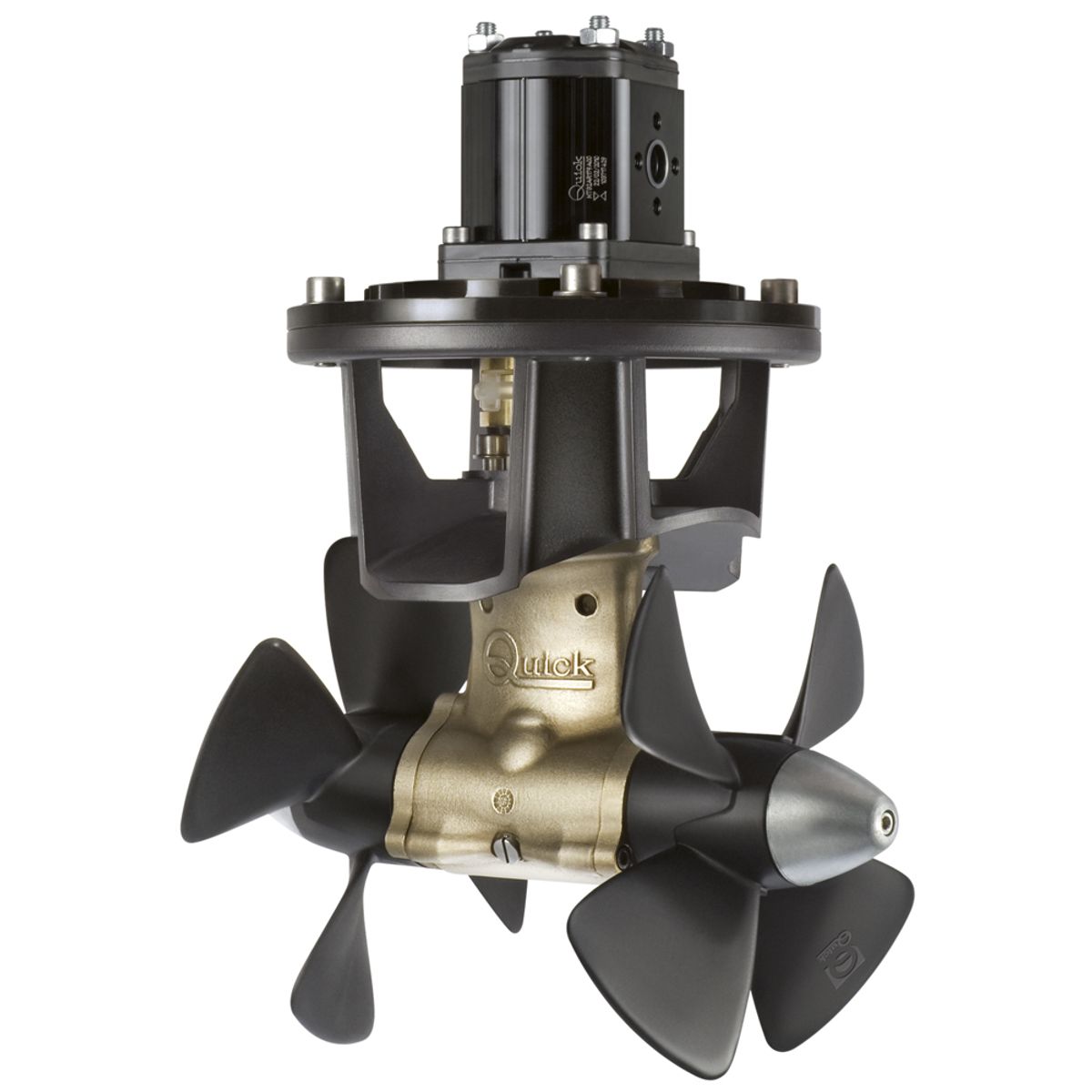

Quick BTH 250-220 hydraulic thruster recommended for boats 16 to 22 meters (52-72 ft) in length. This model has a double propeller made in sturdy composite material and a bronze gearbox. It is equipped with an elastic coupling and has a zinc anode independent from the gearbox – making it easily replaceable.
Specs:
• Model: BTH 250-220
• Number of propellers: 2 counter-rotating
• Tunnel diameter: 250mm (9-27/32″)
• Motor type: Reversible gear-type
• Motor power: 14.1 cc (0.86″³)
• Weight: 17.3kg (38.13lb)
• Flow rate: 41.5 litres/minute (11.0 US GPM)
• Pression: 180 bar (2610 psi)
• Hydraulic power absorbed: 12.5 kw (17 hp)
• Thrust: 220 Kgf (485 lbs)
Product contents:
• Hydraulic thruster
• Drill templete
• O-ring (for assembly)
• User’s manual
• Conditions of warranty
Weight – 17.3
SKU – Q-BTHY2502209
Product Type – Boat Control > Thrusters > Thrusters
