Description

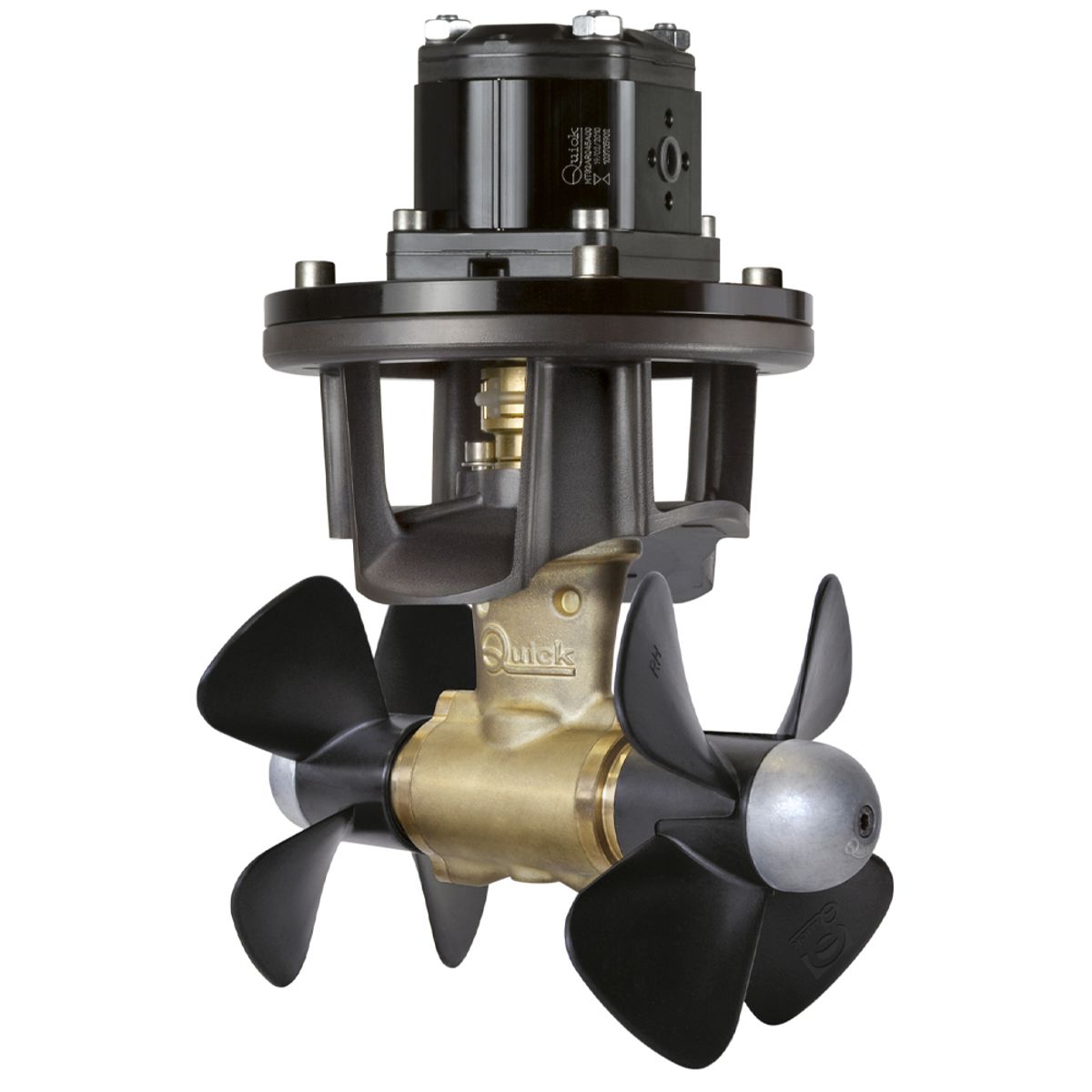

Quick BTH 185-85 hydraulic thruster recommended for boats 10 to 18 meters (33-59 ft) in length. This model has a double propeller made in sturdy composite material and a bronze gearbox. It is equipped with an elastic coupling and has a zinc anode independent from the gearbox – making it easily replaceable.
Specs:
• Model: BTH185-85
• Number of propellers: 2 counter-rotating
• Tunnel diameter: 185mm (7-19/64″)
• Motor type: Reversible gear-type
• Motor power: 4.5 cc (0.27″³)
• Weight: 8.8kg (19.4lb)
• Flow rate: 17.0 litres/minute (4.5 US GPM)
• Pression: 250 bar (3625 psi)
• Hydraulic power absorbed: 7.1 kw (9.6 hp)
• Thrust: 85 Kgf (176 lbs)
Product contents:
• Hydraulic thruster
• Drill templete
• O-ring (for assembly)
• User’s manual
• Conditions of warranty
Weight – 8.8
SKU – Q-BTHY1800859
Product Type – Boat Control > Thrusters > Thrusters
