Description

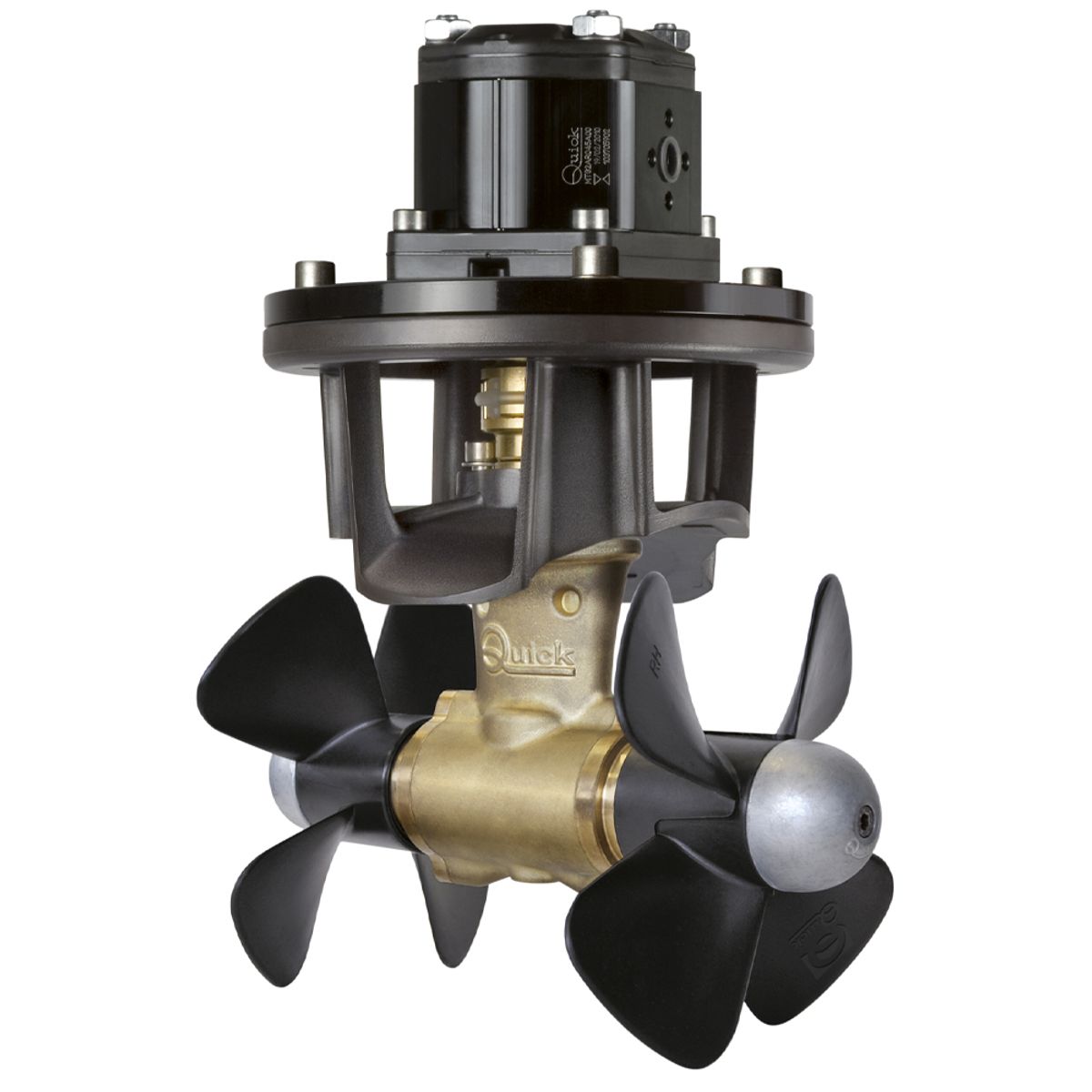

Quick BTH 185-105 hydraulic thruster recommended for boats 10 to 18 meters (33-59 ft) in length. This model has a double propeller made in sturdy composite material and a bronze gearbox. It is equipped with an elastic coupling and has a zinc anode independent from the gearbox – making it easily replaceable.
Specs:
• Model: BTH 185-105
• Number of propellers: 2 counter-rotating
• Tunnel diameter: 185mm (7-19/64″)
• Motor type: Reversible gear-type
• Motor power: 6.4 cc (0.39″³)
• Weight: 8.9kg (19.6lb)
• Flow rate: 28.0 litres/minute (7.4 US GPM)
• Pression: 190 bar (2760 psi)
• Hydraulic power absorbed: 8.9 kw (12.1 hp)
• Thrust: 105 Kgf (220 lbs)
Product contents:
• Hydraulic thruster
• Drill templete
• O-ring (for assembly)
• User’s manual
• Conditions of warranty
Weight – 8.9
SKU – Q-BTHY1801059
Product Type – Boat Control > Thrusters > Thrusters
