Description

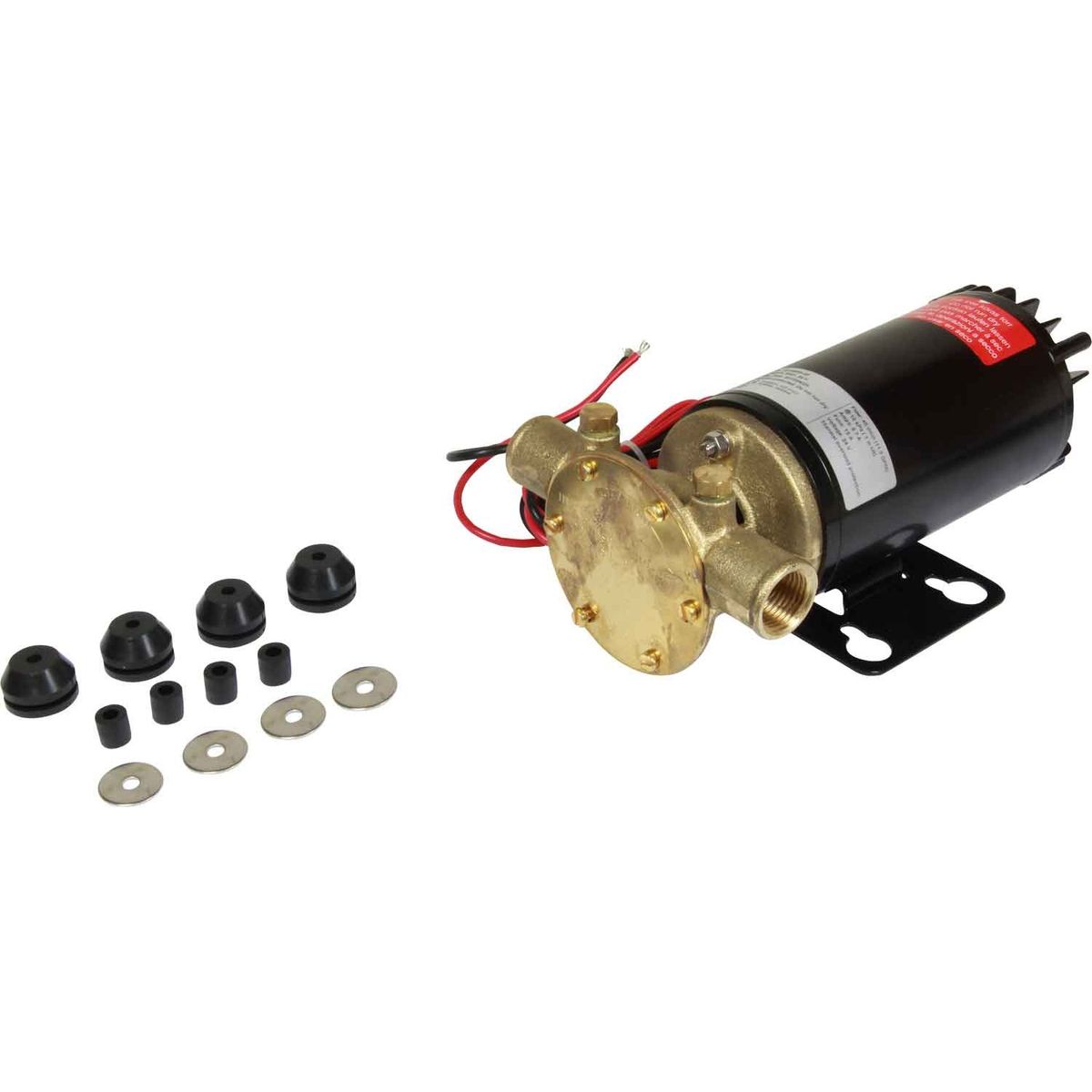

The Johnson F4B-19 electric motor pump is for 24V and can pump 48 litres per minute and self primes up to 4 metres. The Johnson pump has a nitrile impeller and 1/2″ BSP connections.
Bar | kPa | ft | LPM | US GPM | Amp Draw 24V
0.0 | 0.0 | 0.0 | 48 | 12.7 | 6.5A
0.1 | 10 | 3.4 | 45 | 11.9 | 6.7A
0.2 | 20 | 6.1 | 44.5 | 11.7 | 6.8A
0.3 | 30 | 10.1 | 41 | 10.8 | 7.1A
0.6 | 60 | 20.1 | 34 | 9.0 | 7.5A
Johnson 10-24689-02 Spare Parts:
Position | Spare Part | Part Number
1 | Body | 01-24452-1
2 | Motor (24V) | 01-24676-02
3 | Impeller | 09-824P-9
4 | Lip Seal | 0.2233.007
5 | End Cover | 01-42398
6 | O-Ring | 0.2173.470
7 | Screw | 0.0279.501
8 | Nut | 0.0185.069
9 | Washer | 0.0350.207
10 | Slinger | 0.2173.470
11 | Plug | 0.2500.805
12 | Foot Kit | 09-47194
| Service Kit | 09-46600
Weight – 3
Product Type – Pumps > Electrical Pumps > Flexible Impeller Pumps
