Description

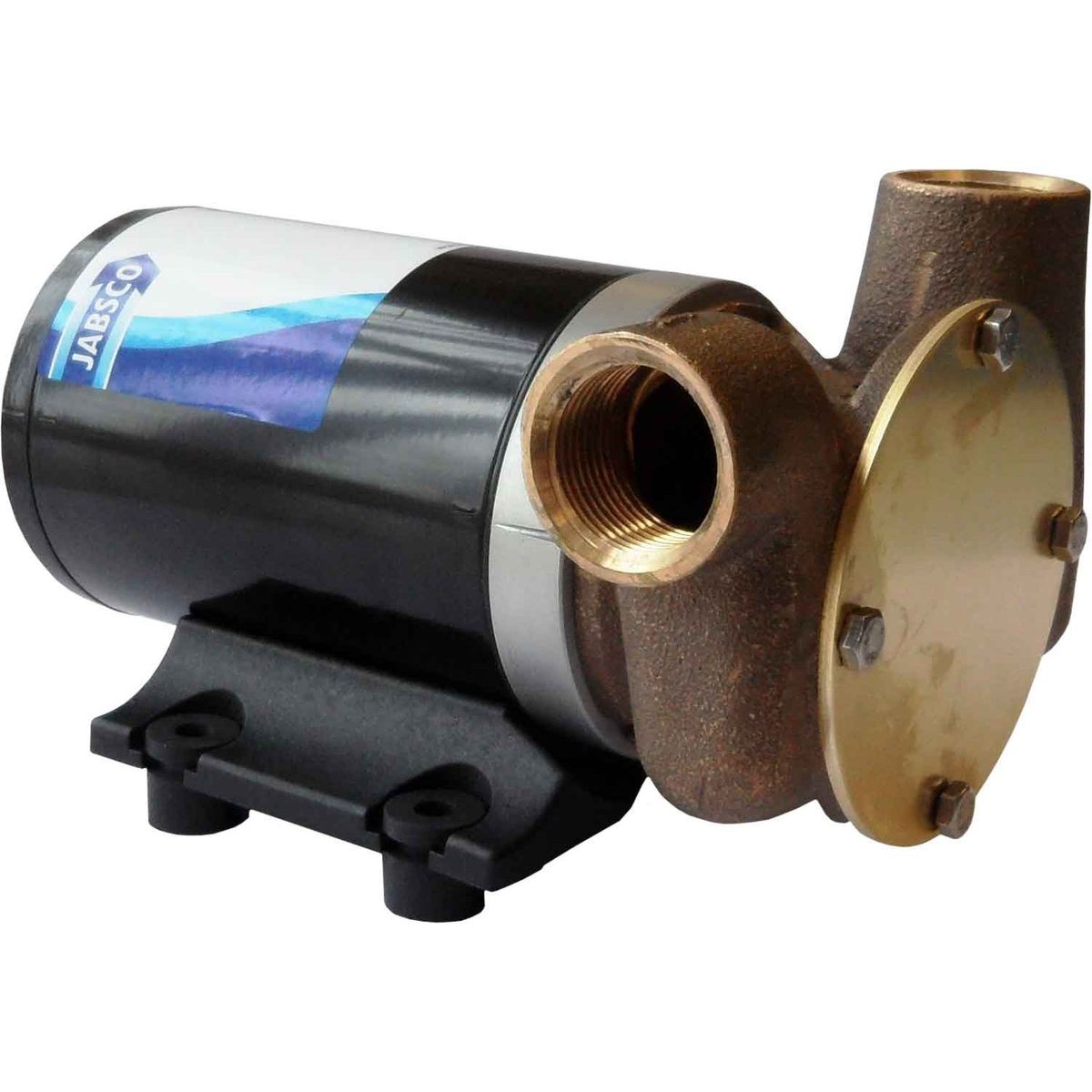

The Jabsco 23920-2323 Utility Puppy 3000 is a reliable, self priming electric motor pump. The Utility Puppy 3000 is made with a non-rusting bronze body and a carbon ceramic shaft seal. The pump is protected for up to 10 minutes of dry running after initial prime.
All electric impeller pumps must not be mounted vertically where the impeller housing will be above the motor.
Jabsco Pump 23920-2323 Spare Parts:
Part ID | Spare Part | Part Number | Quantity
1 | Screw | X3001-147F | 4
2 | End Cover | 23825-0000B | 1
3 | O-Ring | X4020-257A | 1
4 | Impeller | 7273-0003B | 1
5 | Cam | 53023-0000 | 1
6 | Screw | X3002-147F | 1
6a | O-Ring | X4020-105A | 1
8 | O-Ring | X4020-221B | 1
9 | Motor (24V) | 98012-0162C | 1
10 | Seal | SP8021-0301B | 1
11 | Screw | X3001-147F | 2
| Service Kit | SK416-0113 | 1
Weight – 4.581
Product Type – Pumps > Bilge Pumps > Electric Motor Bilge Pumps
