Description
AG swing check valve with 1/2″ BSP female ports, full bore high flow rate and a heavy duty DZR brass high corrosion resistance construction. The valve upper plug allows cleaning and maintenance and a flow direction arrow is indicated on valve body. Horizontal mounting position.
Specifications
Body & Cap: DZR Brass CW602N
Temperature Limits: -20¡C to +120¡C
Pressure Limits: 16BAR
Thread: BSP Female thread to UNI ISO 7/1 (UNI EN 10226) DIN2999
1/2″ BSP female
Bore: 15mm

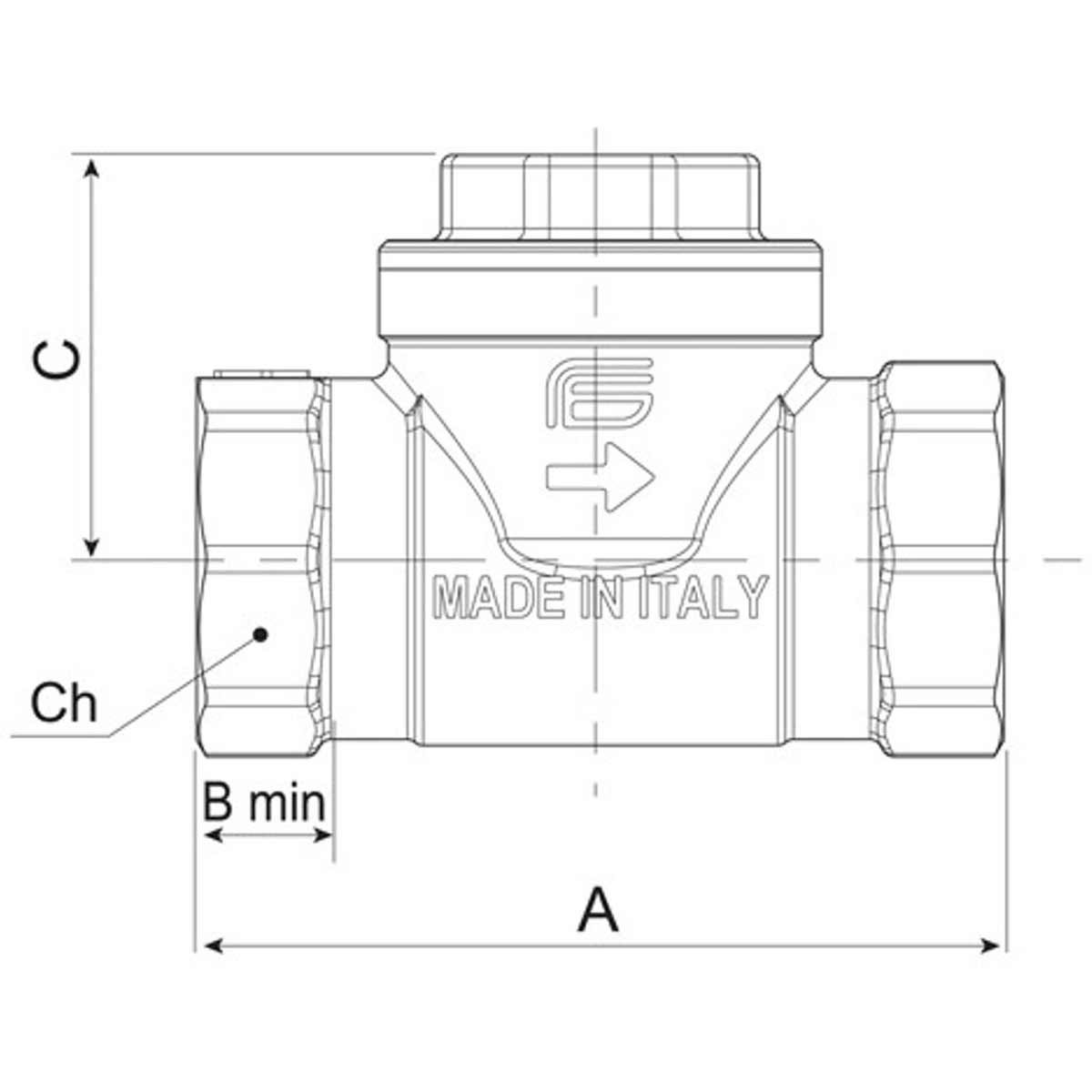

A: 59mm
B: 15mm
C: 31.5mm
CH: 26mm
Weight – 0.1639
Product Type – Plumbing > Valves > Non Return Valves
