Description

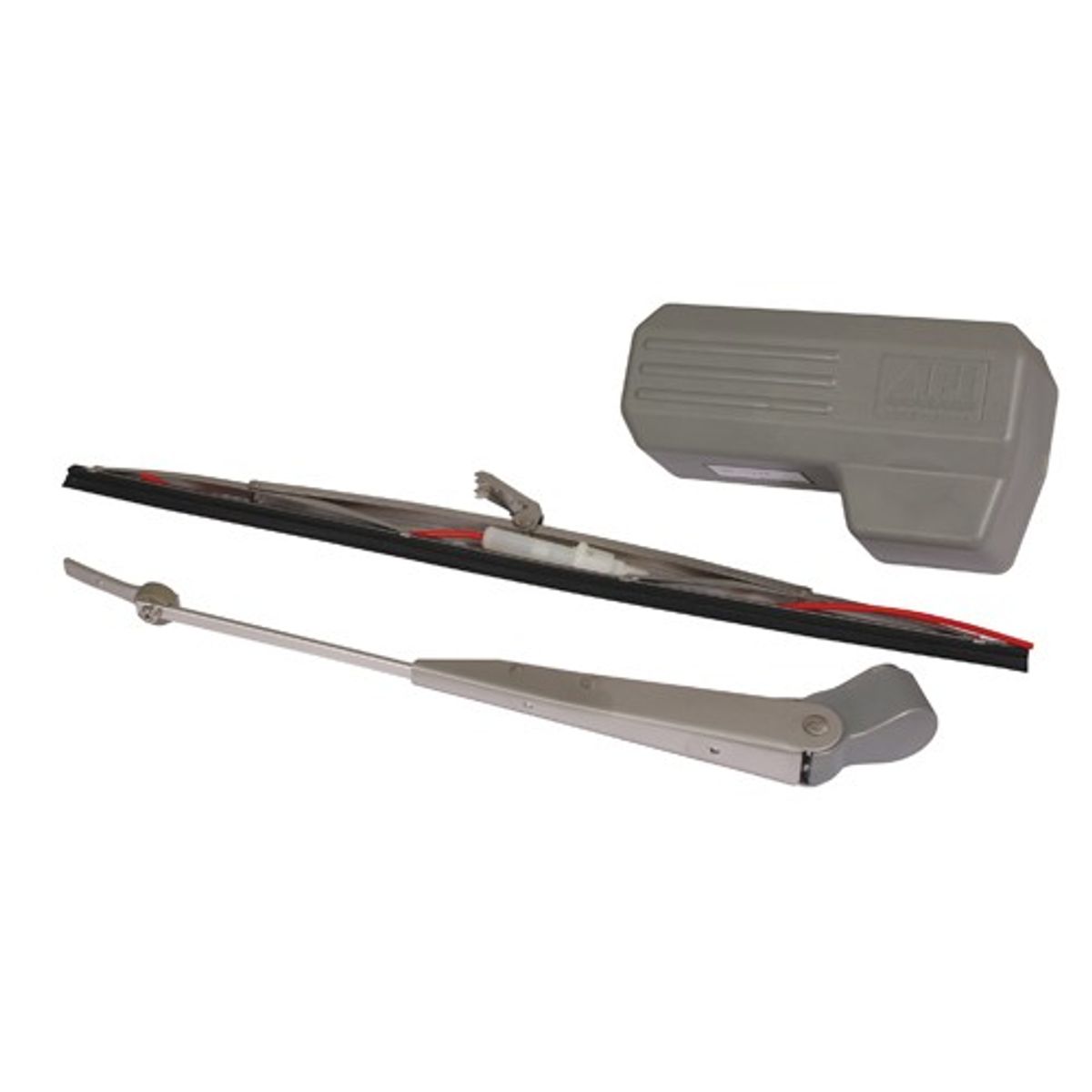

Kit Includes
6-11244 Motor
6-11341 10″ -14″ Arm
14″ Polymer wiper blade
1000 Waterproof Wiper motor specification
Powers 16″ (406mm) Deluxe arm and 16″ (406mm) Deluxe blade combinations at a sweep set of 110°
Factory pre-set sweep of 80°, adjustable to 50°, 65°, 80°, or 110°
0.625″ (16mm) diameter shaft
Fully sealed waterproof housing made of UV stabilized, high temperature, high-impact thermoplastic
12 volt heavy-duty motor with anti-rotation drive shaft
Knurled drive shaft and solid brass arm drive nut
Coast to park with adjustable right or left self parking
Includes 5 amp fuse and holder (on/off switch not included)
RF shielded circuitry
Weight: 1.75 lbs (0.79kg)
Shaft length: 2.5″ (68mm), *includes 0.5″ (13mm) length of knurled arm fitting
Measures approximately (L x W x D): 6.625″ (168mm) x 3.375″ (86mm) x 2″ (51mm)
Stall torque: 55 in-lbs (63 kgf/cm; 6.2 Nm)
Stall current: 9.8 – 10.0 amps
No load current: 0.8 – 1.2 amps
Weight – 1.23
SKU – 6-11248
Product Type – General Boat Equipment > Windscreen Wipers > Kits
