Description

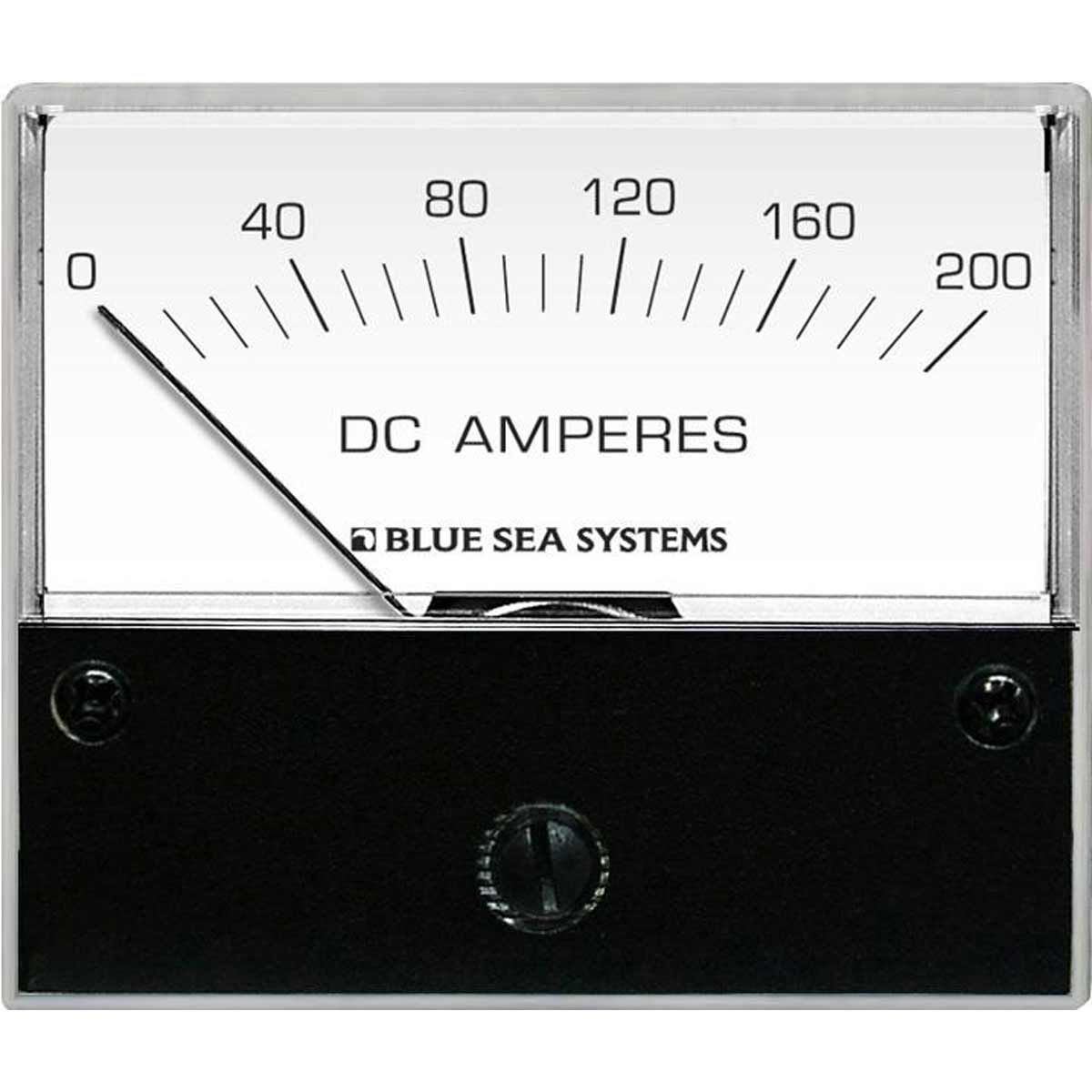

Blue Sea 8019 DC analogue ammeter 0-200A with simple 4 wire connection from shunt – no other power required. The meter senses and powers from shunt connection.
Backlit meter face (separate 12 or 24V DC backlight connections)
Packaged complete with shunt
Accuracy: 3% of scale range
Operating Amperage at full scale: 1 Milliamp
External Shunt Type: 50 Millivolt at meter full scale
Dimensions
Standard: 60.33 x 71.12mm (2.375″ x 2.8″)
Meter: Current
Face Size: 69.85mm (2.75″)
Function: 0 to 200A
Backlighting Amperage: 16mA @ 12V DC, 20mA @ 24V DC
Weight – 0.27
Product Type – Gauges > Gauges & Instruments > Ammeter Gauges
