Description

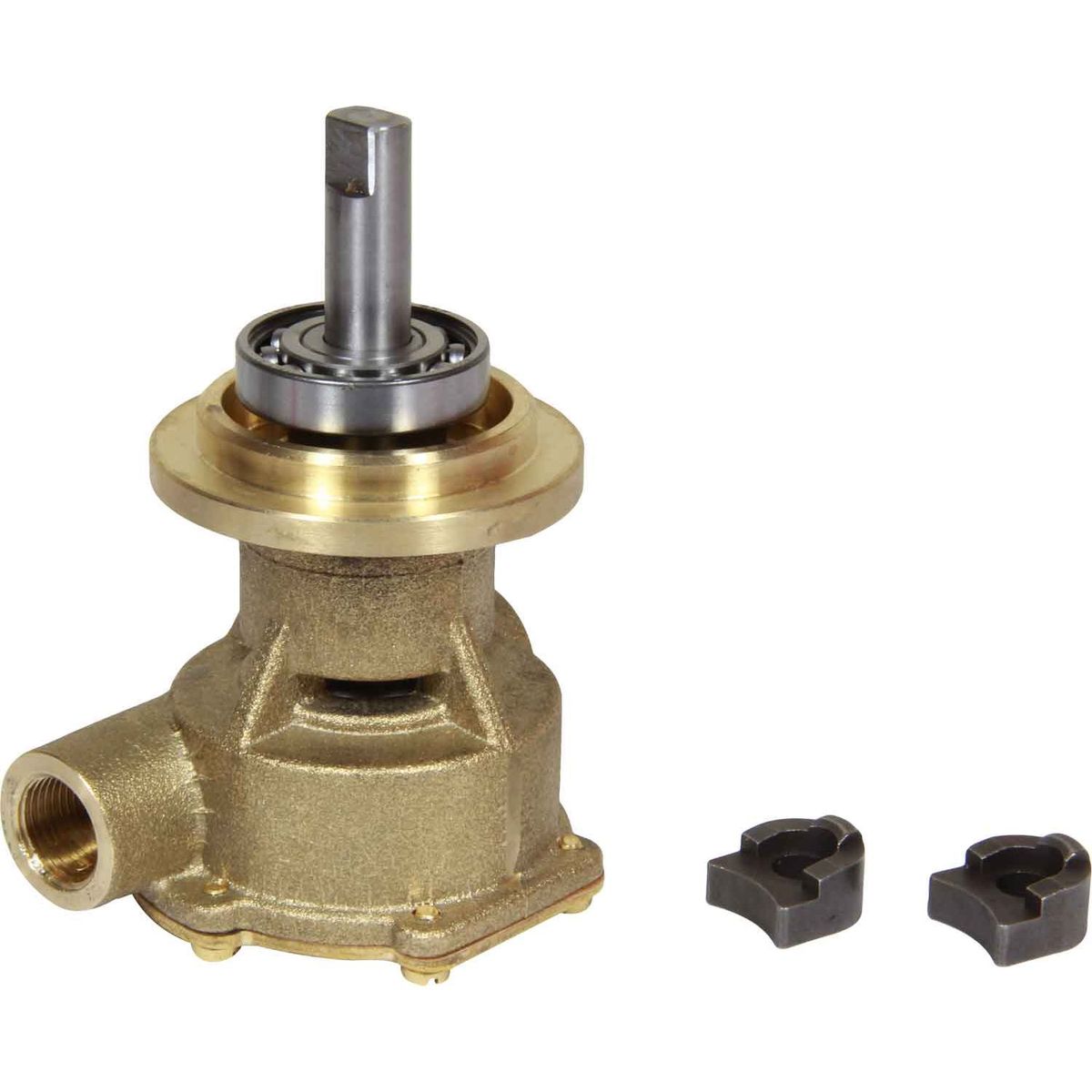

The Johnson 10-35271-01 (209787) is from the F4B family of pumps. It is designed to be flange mounted to the engine timing cover. Popular fitments for this Johnson pump include the Thornycroft 60 and Thornycroft 80 engines, as well as some Mitsubishi based marine engines.
Replacement impeller: JP-09-810B.
Ports are threaded 3/8″ BSP female.
Johnson 10-35271-01 Spare Parts:
Position | Spare Parts | Part Number | Quantity
1 | Body | 01-35099-2 | 1
2 | Shaft | 01-45950 | 1
3 | Impeller | 09-810B-1 | 1
4 | Cam | 01-42389 | 1
5 | End Cover | 01-45282 | 1
6 | Gasket | 01-45284 | 1
7 | Eccentric Sleeve | 01-45949 | 1
8 | Clamp | 01-43238 | 2
10 | Screw | 0.0279.501 | 1
11 | Screw | 01-46794-03 | 6
12 | Lip Seal | 0.2233.010 | 1
13 | Retaining Ring | 0.0371.028 | 2
14 | Ball Bearing | 0.3431.441 | 1
15 | Ball Bearing | 0.3431.204 | 2
16 | Washer | 01-45955 | 1
17 | Washer | 01-46790-01 | 1
Weight – 1.01
Product Type – Engine Spares by Model > Thornycroft > 80
