Description
Sierra Marine water pump repair kit 18-3517 (without base) replaces the following pump service kits:
– Mercury 46-96148A5, 46-60367A1, 46-96148A8 & 46-96148Q8, 32437A1, 32437A3, 37433A1, 42579A4, 44292A4, 48747A3, 57234A3, 58618A4, 60367A4, 64141A11, 69222A3, 73802A3, 73804A3, 78400A2, 96148B5 & 96148B8
– Mallory Marine 9-48311
The pump upper service kit is suitable for the following engines:
Mercruiser:
– #1 Units with Plastic Flush Screw-in Gear Housing (2495186 – 2763441)
– #1 Units (except Mercruiser Alpha) without Flush Screw-in Gear Housing (2763442 – 6854392)
– Mercruiser Alpha I (6854393 – 0D594568)
Mercury:
– 75 4-cylinder (6432901 & Up)
– 80 4-cylinder (4831999 – 6432900)
– 85 4-cylinder (4590512 & Up)
– 90 6-cylinder (4845301 & Up)
– 105 Jet (0D182000 & UP)
– 115 6-cylinder (4694237 & Up)
– V 135 (904646 & Up)
– 140 (4865678 & Up)
– 140 Jet (0D082000 & Up)
– 150 (4121435 – 4868647)
– V 150 (A904645 & BELOW, A904646 & UP)
– V 175 (6618750 & BELOW, 6618751 & UP)
– V 200 (6625220 & BELOW, 6625221 & UP)
– V 220 (All)
– V 225 (All)
– XR4/Magnum II (All)

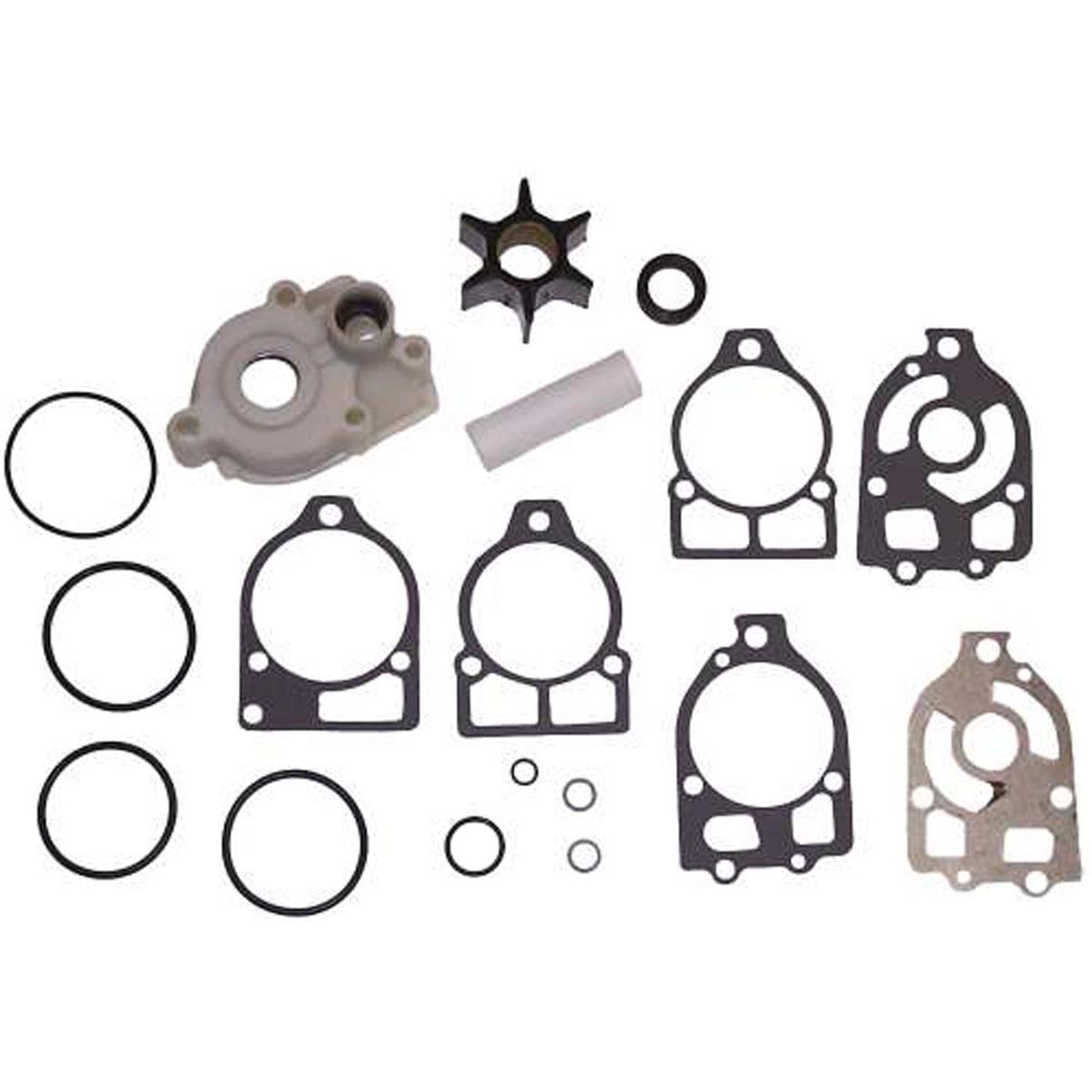

Sierra 18-3517 Water Pump Kit contains the following spare parts:
18-3109 Water Tube (23-29804)
18-3017 Impeller (47-89984)
18-3116 Housing (46-96148A1)
18-2919 Water Pump Gasket (27-42631-1)
18-3110 Grommet (26-38970)
2x 18-2945 Drain Gasket (26-20260, 12-19183)
18-2826 Water Pump Base to Gear Housing Gasket (27-85610-1)
18-2914 Water Pump Gasket (27-85608-1)
18-2915 Water Pump Gasket (27-85609-1)
18-2944 Seal Ring (26-45577)
18-3117 Plate (32435)
18-7158 O-Ring (25-30613)
18-7162 O-Ring (25-33145)
18-7173 O-Ring (25-30224)
18-7176 O-Ring (25-90011)
18-2801 Water Pump Gasket (27-32438)
18-7196 O-Ring (25-38099)
18-7426 O-Ring (35-30271)
Weight – 0.35
Product Type – Engine Spares by Model > Mercury > Mercury
