Description

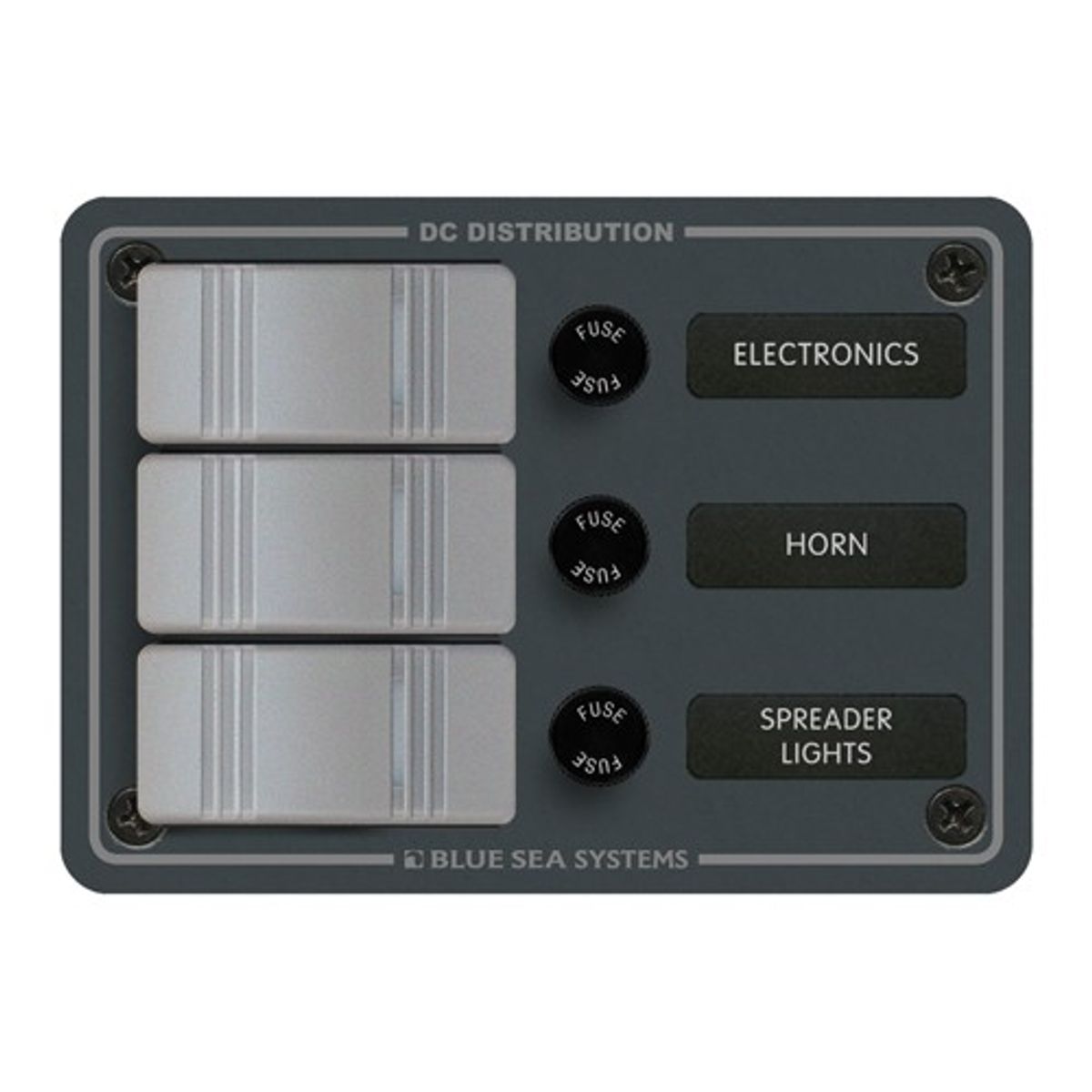

Blue Sea 8054 vertical series waterproof fused switch panel designed for flybridge and open cockpit applications on 12 or 24 Volt DC Systems.
The panel will withstand the water exposures normally encountered in above deck applications, including: salt spray, rain, hose washdowns and momentary immersions.
Waterproof panel mount fuse holders accept commonly available AGC (fast acting) and MDL (slow blow) 1-1/4″ x 1/4″ (32mm x 6.5mm) glass fuses.
– Waterproof ON-OFF Contura Switches & mounting gaskets
– ON indicating LEDs embedded in switches
– Includes set of 30 common DC labels
Includes:
3x Panel Mount AGC/MDL Fuse Holder (Blue Sea 5021)
Basic DC Panel Label Set – 30 Labels (Blue Sea 8030)
3x Contura Switch SPST Gray – OFF-ON (Blue Sea 8230)
Regulatory:
CE
Rated IP66 – withstands water from heavy seas
Meets UL 1500 and ISO 8846 ignition protection requirements
UKCA
Please Note: Waterproof Panel Labels cannot be back lit.
Weight – 0.32
Product Type – Electrical > Switches & Switch Panels > Switch Panels
