Description

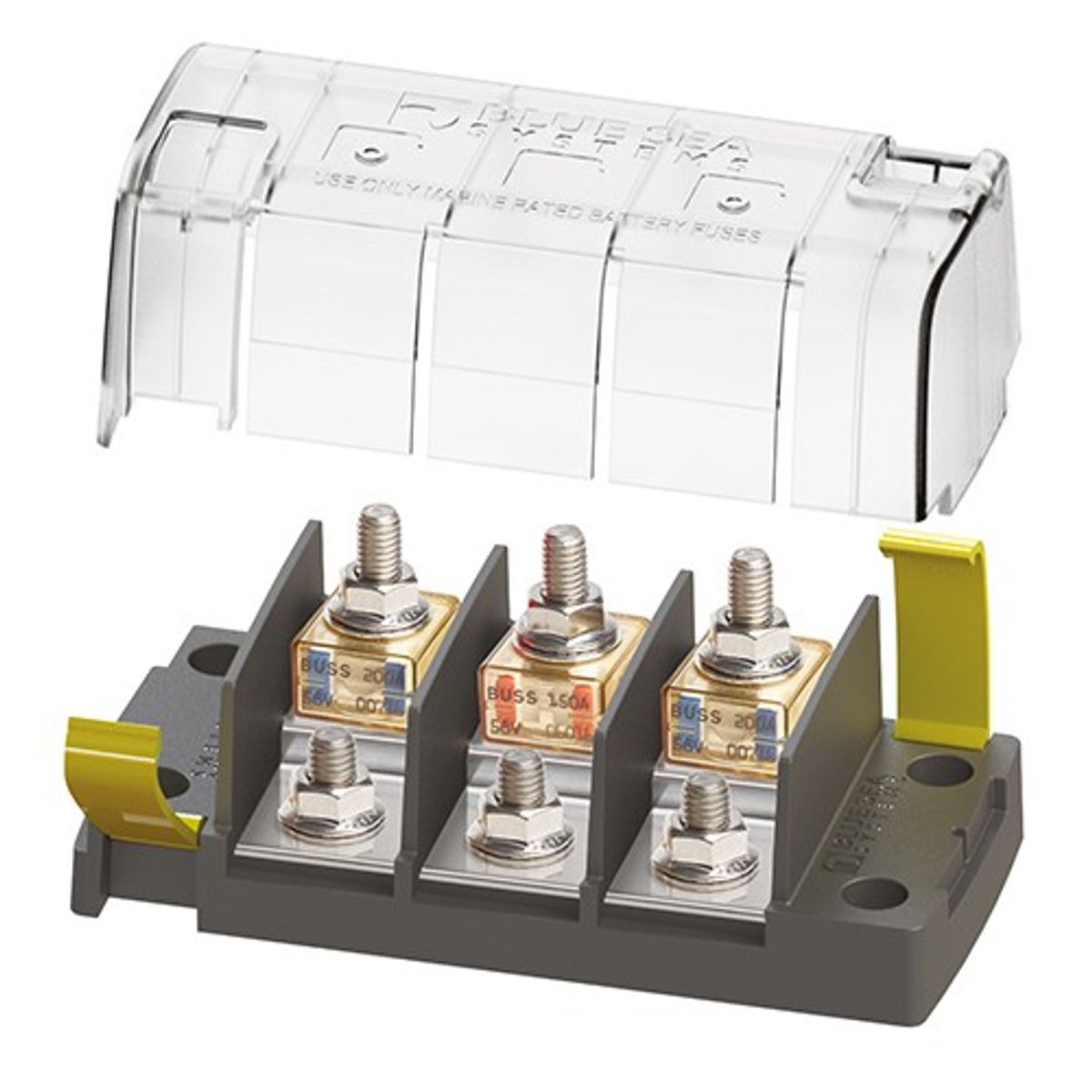

Blue Sea surface mount fuse block is suitable for MRBF (Marine Rated Battery Fuse) fuses.
Surface mount fuse blocks accommodate three MRBF fuses for consolidated high amperage circuit protection. The independent source fuse block (8-25194) is ideal for 3 output battery chargers.
Clip-on cover insulates terminal connections
Versatile wiring options allow all wires to come out a single side
Label recesses for easy circuit identification
One-piece stainless flange nuts ensure safe and secure connections
Ignition protected when used with MRBF fuses
Fuses sold separately (see page 553 of the FMS main catalogue)
Regulatory
Meets ISO 8846 and SAE J1171 external ignition protection requirements when used with MRBF fuses and cover is securely latched
Specifications: 8-25194
Voltage Max. Operating: 58V DC
Amps Max. Operating: 300 per block
(using 4/0 cables) – 240A per circuit
Terminal Fuses available: 30A-300A
Terminal Stud Size: 5/16″-18 (8mm)
Mounting Hole Size: #10 (5mm)
Weight – 0.54
Product Type – Electrical > Fuses & Circuit Breakers > Fuse Holders & Covers
