Description

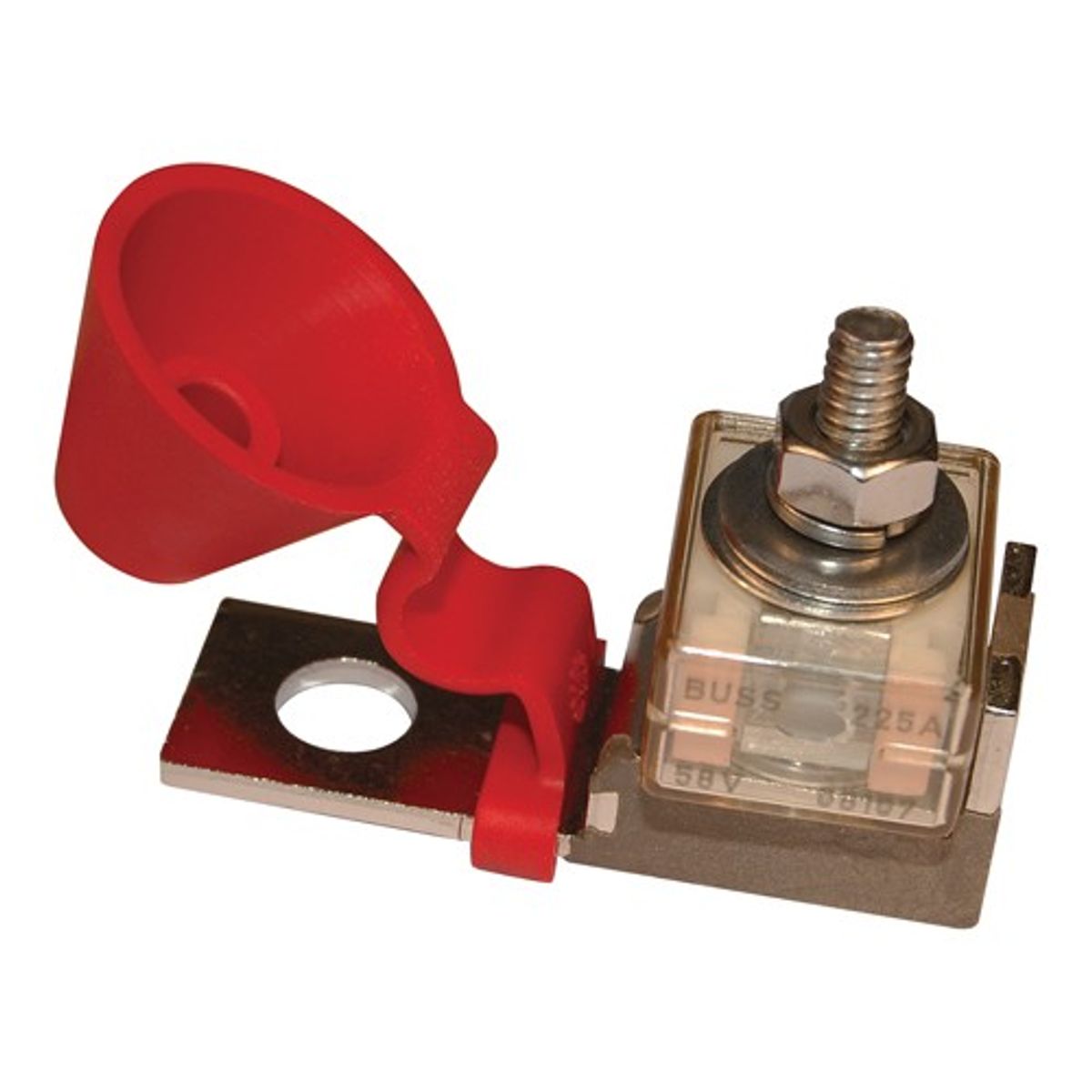

Blue Sea 5191 battery terminal fuse block (MRBF – Marine Rated Battery Fuse) for 30 to 300 Amp terminal fuses. Easily and economically satisfies ABYC 7″ circuit protection rule by mounting on a 3/8″ battery post, battery switch or busbar. The fuse blocks isolated stud design uses standard M8 hardware and permits stacking of terminals.
Compact high amp fuse – appropriate for DC Main, inverter windlass and bow thruster circuit protection
Provides high current protection in tight space constraints
Weatherproof – suitable for small open-cockpit boats and other harsh environments
Insulating cap prevents accidental shorts
Accepts 5/16″ or 3/8″ ring terminals
Maximum Voltage: 58V DC
Terminal Stud: M8 (5/16″)
Maximum Torque: 75 in-lb (8.47 Nm)
Weight – 0.07
Product Type – Electrical > Fuses & Circuit Breakers > Fuse Holders & Covers
