Description

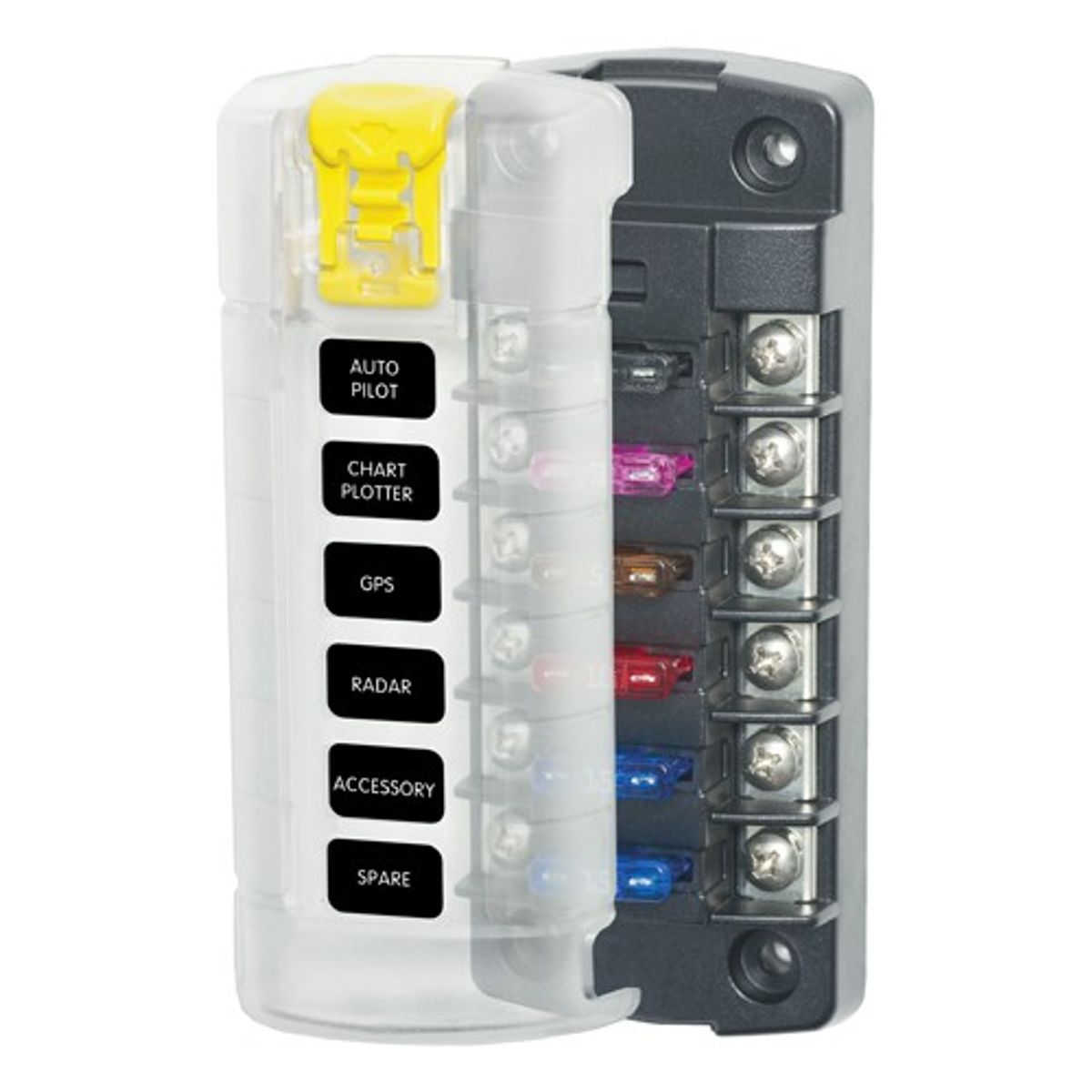

Blue Sea Compact ST Blade Fuse Block with Screw Terminals and 6 independent sourced circuits for ATO©/ATC© fuses. This fuse block consolidates branch circuits and eliminates the tangle of in-line fuses for electronics and other appliances.
Can be used for 24-hour circuits
Clear insulating cover with label recesses accepts Small Format Labels
Cover satisfies ABYC/USCG insulation requirements
Accepts ring terminals
Easy to open, push button latch provides easy access to fuses
Tin-plated copper buses and fuse clips
Fuse Blocks with covers include 20 write-on circuit labels
Fuses sold separately
Specifications
Voltage Max Operating: 32V DC
Amperage Max Operating: 30A per circuit, 40A per jumped circuit group
Fuse Type: ATO© or ATC© Fuses
Screw Terminal: #8-32 Screws with
Captive Star Lock washer
Mounting: #8 Screw (M4)
Weight – 0.16
Product Type – Electrical > Fuses & Circuit Breakers > Fuse Holders & Covers
