Description

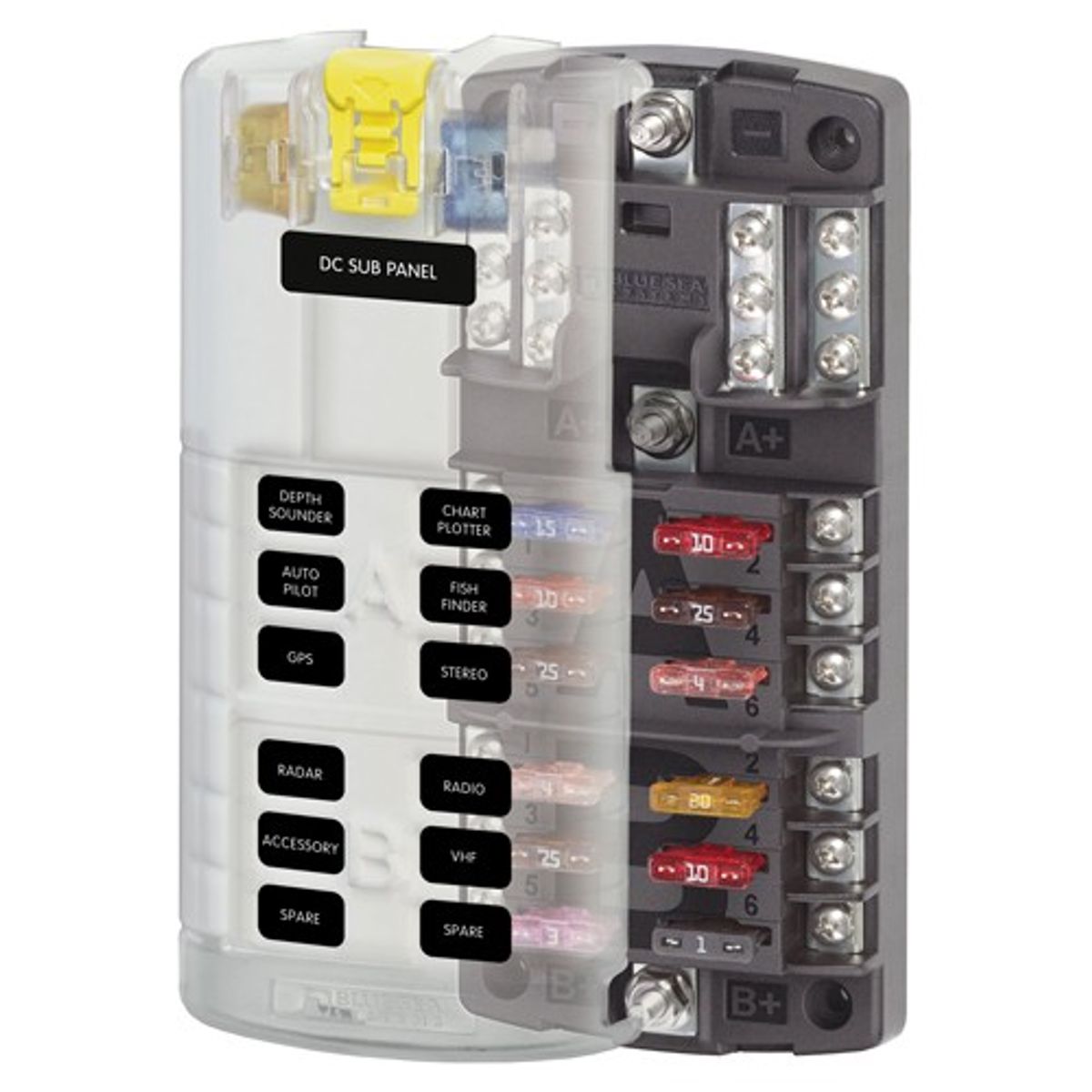

Blue Sea Split ATO©/ATC© blade fuse block with ground and insulating cover. For use when a mix of switched and 24-hour circuits are desired in the same block.
Provides two isolated groups of six ATO©/ATC© circuits
For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
Screw terminals for securing wires accept ring terminals
One-piece stainless flange nuts ensure safe and secure connections
Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
Easy to open, push button latch for easy access to fuses
Tin-plated copper buses and fuse clips
Fuses sold separately
Supplied with cover
Specifications
Circuits: 12
Maximum Amperage: 30A per circuit, 100A total (not to exceed 80A per load group)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4)
Negative Bus: #10-32 Stud
Positive Bus: #10-32 Stud
Recommended Torque: 24 in-lb (2.71 Núm)
Screw Terminal Torque: 18 in-lb (2.03 Nm)
Screw Terminal Type: #8-32 Screws with captive star lock washer
Weight – 0.34
Product Type – Electrical > Fuses & Circuit Breakers > Fuse Holders & Covers
