Description

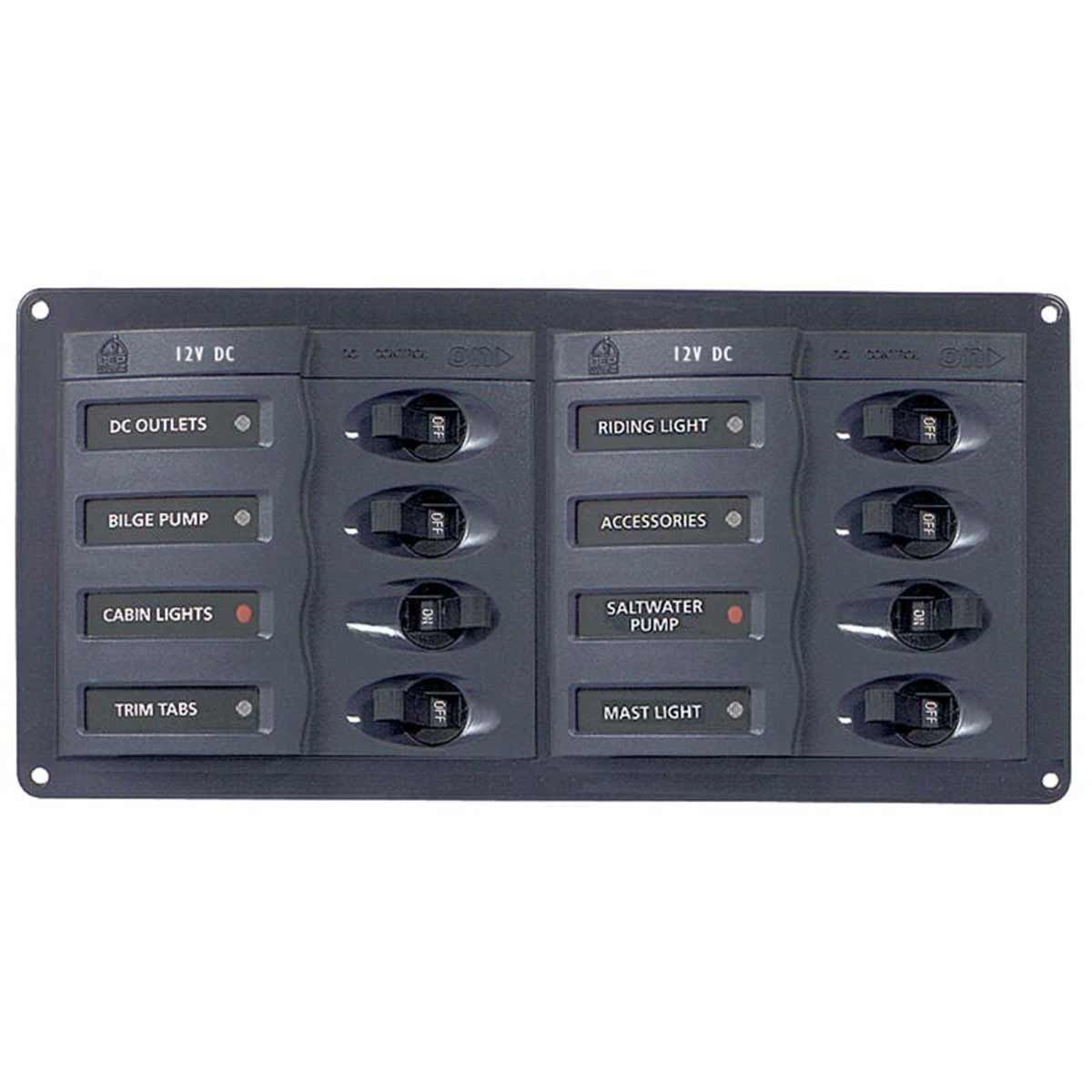

BEP 901H Circuit Breaker Panel with horizontal 8-position layout, suitable for 12V DC systems.
Single pole circuit breakers: 2x 5A, 2x 10A, 3x 15A and 1x 20A.
Maximum Amperage: 160A
Height: 115mm (4.5″)
Width: 239mm (9.75″)
Depth: 65mm (2.5″)
Neg Bus: 6-way
Red LED indicates systems on
12V DC
Marine grade powder coated aluminium
ABYC standard voltage indication
Green LED backlit labels
Stylish clip-on contour fascia
Label sets and busbar supplied with panels
Cut-out size – 10mm (3/8″) inside all external edges
Depth for mounting 2.5″ (64 mm) all panels
Weight – 1.07
Product Type – Electrical > Fuses & Circuit Breakers > Circuit Breakers
