Description

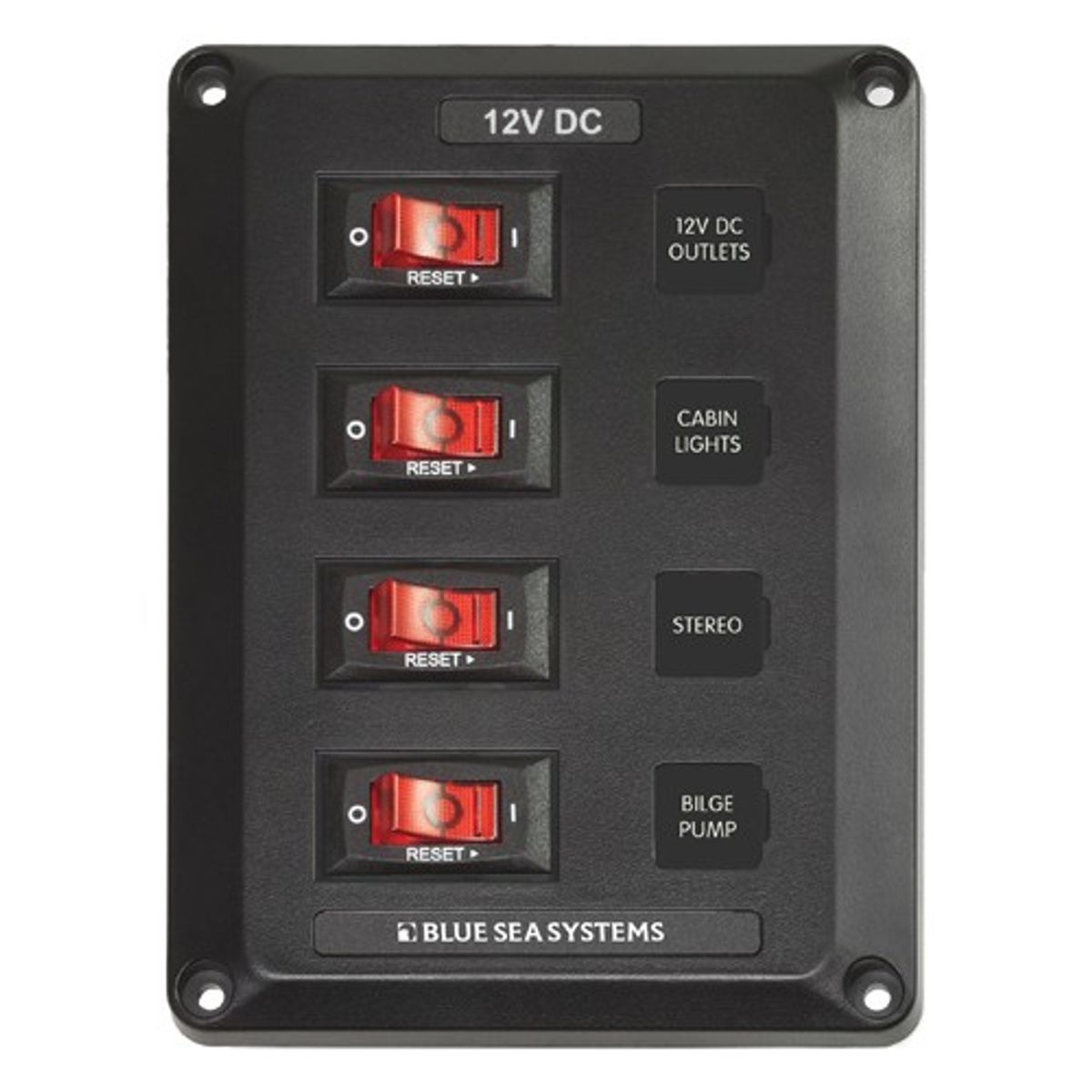

BLUE SEA BELOW DECK CIRCUIT BREAKER PANELS
DURABLE – Moulded panel frame will stand up to UV and salt air
EASY – Low profile makes it easy to install in tight spaces
SIMPLE – Fast-on circuit breaker connectors make it quick to wire
CONVENIENT – Red “ON” indicating LEDs for safe operation in low light conditions
4 Carling Technologies 15A circuit breakers
Illuminated ON indication
Polycarbonate/ABS panel surface is UV-stabilized, flame retardant, and will not corrode
Quick connect BUS eliminates wire harness and clutter contributing to a low profile panel
Two-wire connection for powering all panels is simple and requires #10 ring terminals. Terminals screw to bus bars for secure connections
Set of 15 square format circuit labels are included, and are easy to replace. Additional standard or custom labels are available through Blue Sea Systems
Stainless steel #6 x 5/8″ mounting screws included
No. of Positions 4
Ring Terminal Size: M5 (#10)
Terminal Type: 1/4″ Male quick connect
Maximum Torque: Terminal studs: 2.25 N-m (20 in-lb), Mounting screws: 1.13 N-m (10 in-lb)
Weight – 0.214
Product Type – Electrical & Navigation > Switches & Switch Panels > DC Switch Panels
