Description

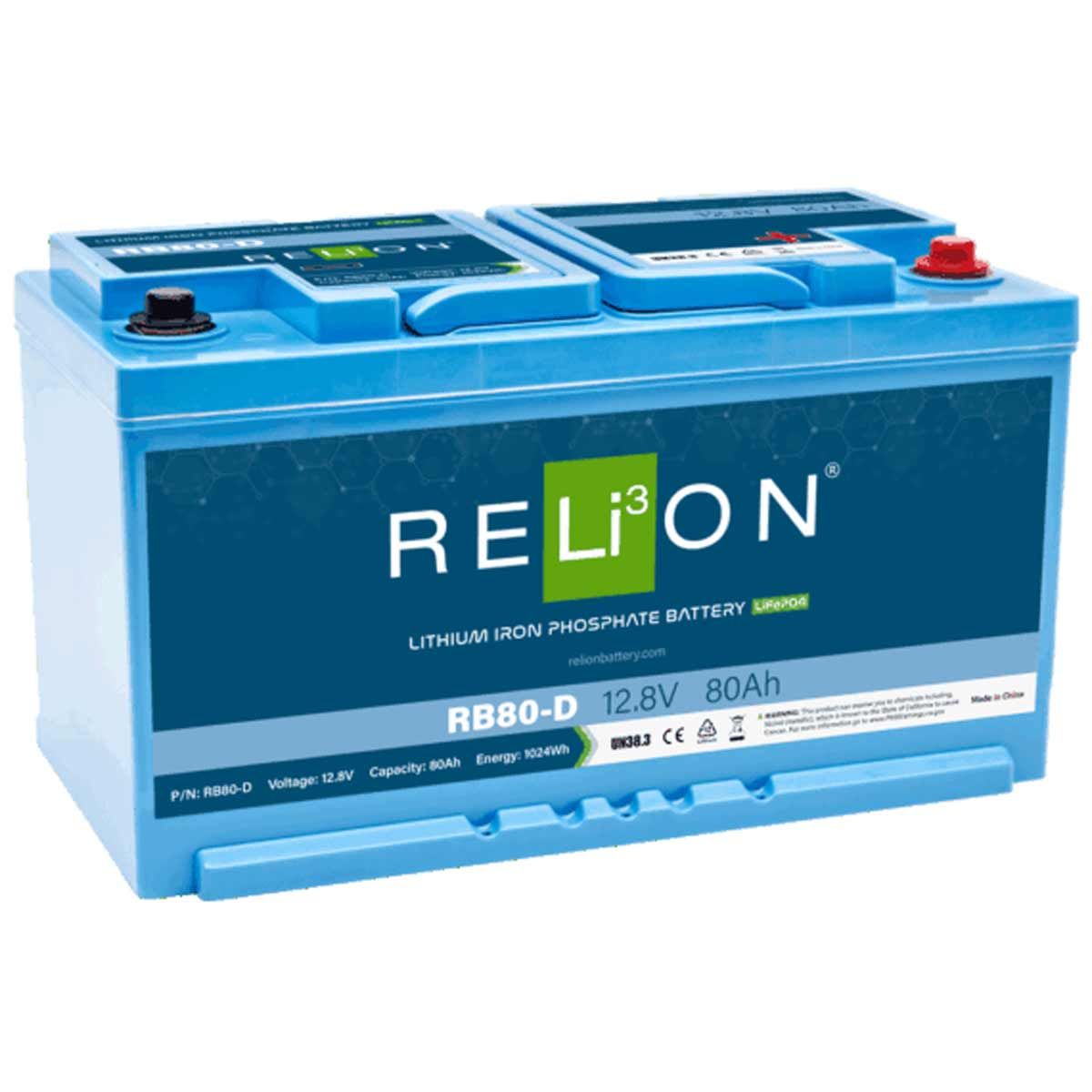

RELiON RB80-D 12V 80Ah DIN LiFePO4 Battery
This 12V 80Ah lithium deep cycle battery is a safer, more lightweight alternative in your application. The RB80-D is a European DIN size battery.
At 25 lbs, this battery is less than half the weight of a lead-acid equivalent, helping to fight against the drag cause by heavier options. It maintains consistent power and is equipped with handles for carrying, an M8 terminal type and a built-in battery management system (BMS). All RELiON LiFePO4 batteries have installation flexibility, fast-charging capabilities and are maintenance free.
Applications: Marine, Recreational Vehicles, Solar, AWP, Electric Vehicles & Floor Machines
Electrical Specifications
Capacity @ 25A: 192 min
Resistance: ²30 m½ @ 50% SOC
Efficiency: 99%
Self Discharge: <3% per Month
Maximum Modules in Series: 4
Mechanical Specifications
Cell Type: Cylindrical
Chemistry: LiFePO4
Discharge Specifications
Maximum Continuous Discharge Current: 80 A
Peak Discharge Current: 160 A (7.5 s ±2.5 s)
BMS Discharge Current Cut-Off: 280 A ±50 A (9 ±4 ms)
Recommended Low Voltage Disconnect: 11 V
BMS Discharge Voltage Cut-Off: 8 V (2.0 ±0.08 vpc) (140 ±60 ms)
Reconnect Voltage: 9.2 V (2.3 ±0.1 vpc)
Short Circuit Protection: 200-600 µs
Charge Specifications
Recommended Charge Current: 4 A - 40 A
Maximum Charge Current: 80 A
Charge Current (0 to -10 ¡C): ²0.1 C
Charge Current (-20 to -10 ¡C): ²0.05 C
Recommended Charge Voltage: 14.2 V - 14.6 V
BMS Charge Voltage Cut-Off: 15.6 V (3.9 ±0.025 vpc) (1.1 ±0.4 s)
Reconnect Voltage: 15.2 V (3.8 ±0.05 vpc)
Balancing Voltage: 14.4 V (3.6 ±0.025 vpc)
Temperature Specifications
Discharge Temperature: -4 to 140 ¡F (-20 to 60 ¡C)
Charge Temperature: -4 to 113 ¡F (-20 to 45 ¡C)
Storage Temperature: 23 to 95 ¡F (-5 to 35 ¡C)
BMS High Temperature Cut-Off: 176 ¡F (80 ¡C)
Reconnect Temperature: 122 ¡F (50 ¡C)
Weight - 11.3
