Description

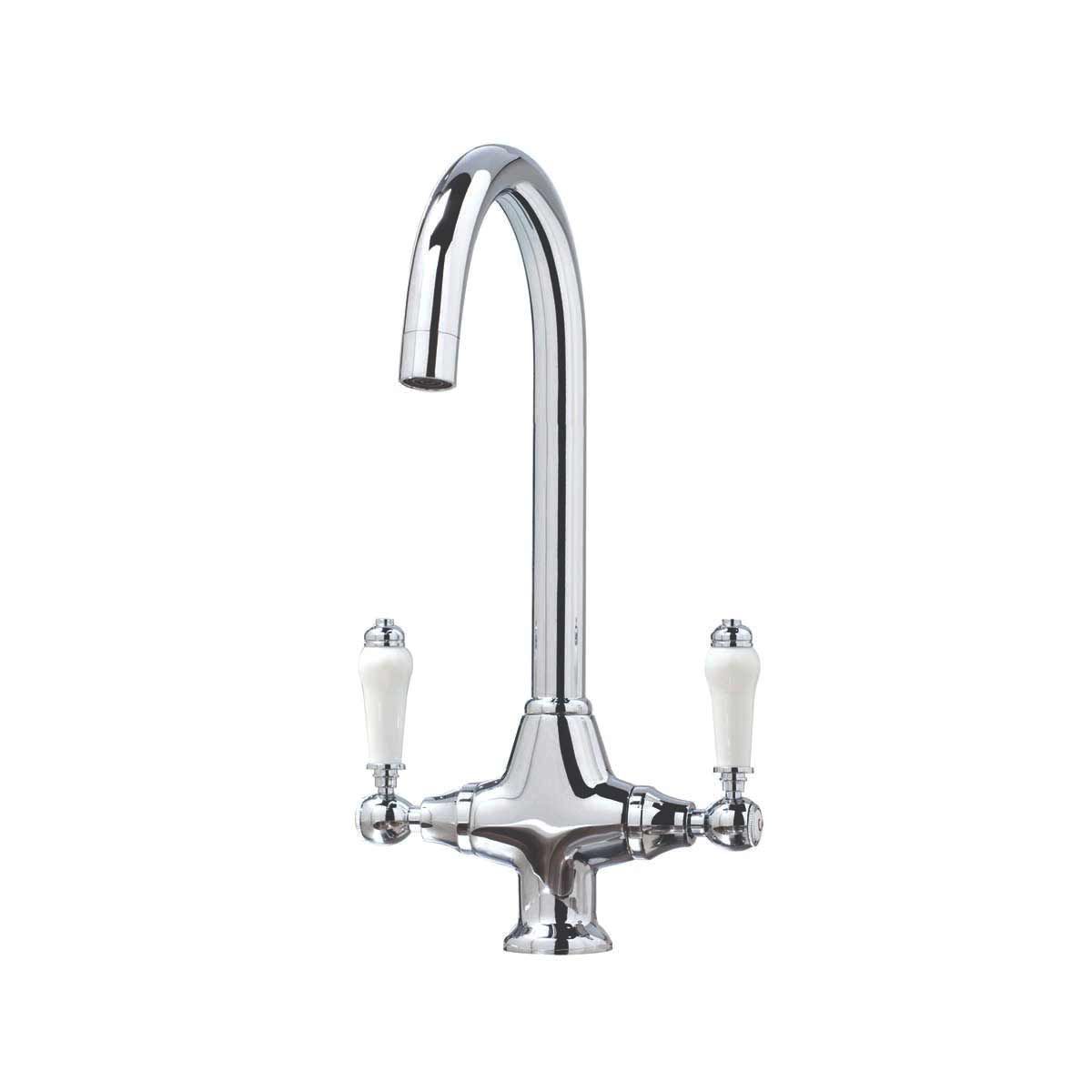

Harrogate monoblock kitchen mixer tap featuring a swivel head and sleek chrome finish.
Performance:
– Minimum Operating Pressure: 0.2 bar
– Maximum Operating Pressure: 5 bar
Flow Rates:
– At 0.2 bar: 3.5 l/min
– At 0.5 bar: 6 l/min
– At 1 bar: 8.1 l/min
– At 2 bar: 11.5 l/min
– At 3 bar: 14 l/min
Connections and Installation:
– Flexible Tails Included: Yes
– Number of Tap Holes Required: 1
– Handle Type: Lever
– Inlet Connection: 1/2″ M10
– Tap Hole Diameter: 35mm
– Tap Type: Manual Mixer
– Valve / Cartridge Type: Quarter Turn Cartridge
– Includes waste: No
Weight – 1.7
Product Type – Domestic Water Supply > Taps & Showers > Taps & Showers
