Description

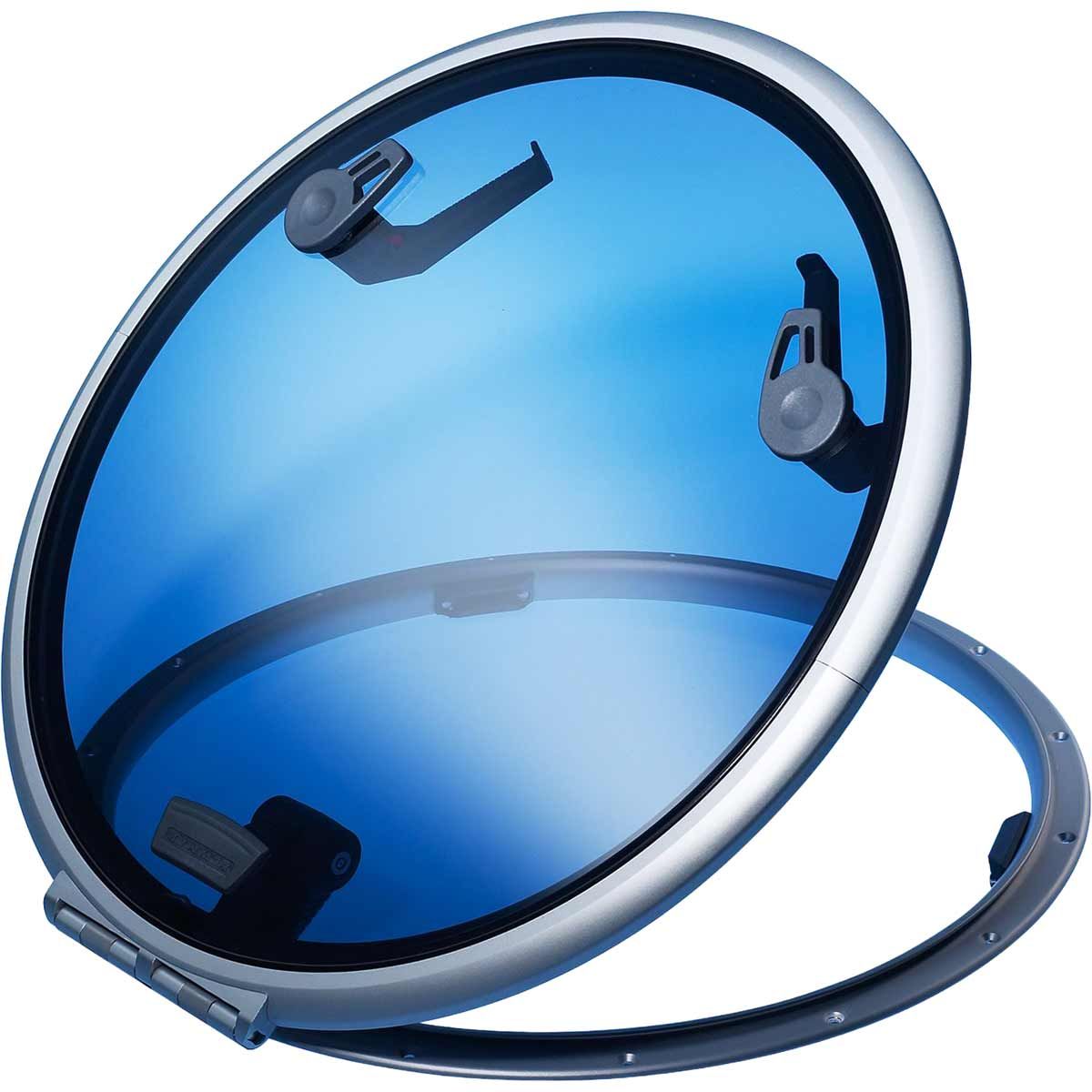

The Lewmar 39922030 Low Profile Hatch has soft styling and sleek looks, ideal for use on a powerboat. Smaller ventilation hatches are suitable for any deck location on sailboats, while the larger sizes can be used as foredeck hatches on smaller to mid size yachts.
– Outside handles allow the hatch to be opened from on deck if it is not locked
– Low profile round hatches open to 170ø
– Friction levers hold the lid open in any position up to 95ø
– Anodised aluminium frame for corrosion resistance
– Curved upper frame profile for strength as well as modern styling
– Full range of spare parts available
Mounting Instructions:
– Fit to a flat surface with a maximum tolerance of +/- 1mm.
– Fastening size at hinge section use (M6 / 1/4″).
– Fastening size for lower frame use 5mm CSK screw No.10 UNC 2 BA.
Size 22
Lower Frame Flange: 15mm (9/16″)
Overall Diameter: 588mm (23-1/8″)
Overall Height: 25mm (1″)
Overall Hinge Length: 591mm (23-1/4″)
Overall Hinge Width: 173mm (6-13/16″)
Cut Out Diameter: 518mm (20-3/8″)
Hatch Weight: 5.8kg (12.8 lb)
Acrylic Window Thickness: 10mm (3/8″)
Weight – 5.8
Product Type – Deck Equipment > Deck Hatches & Portlights > Deck Hatches
