Description

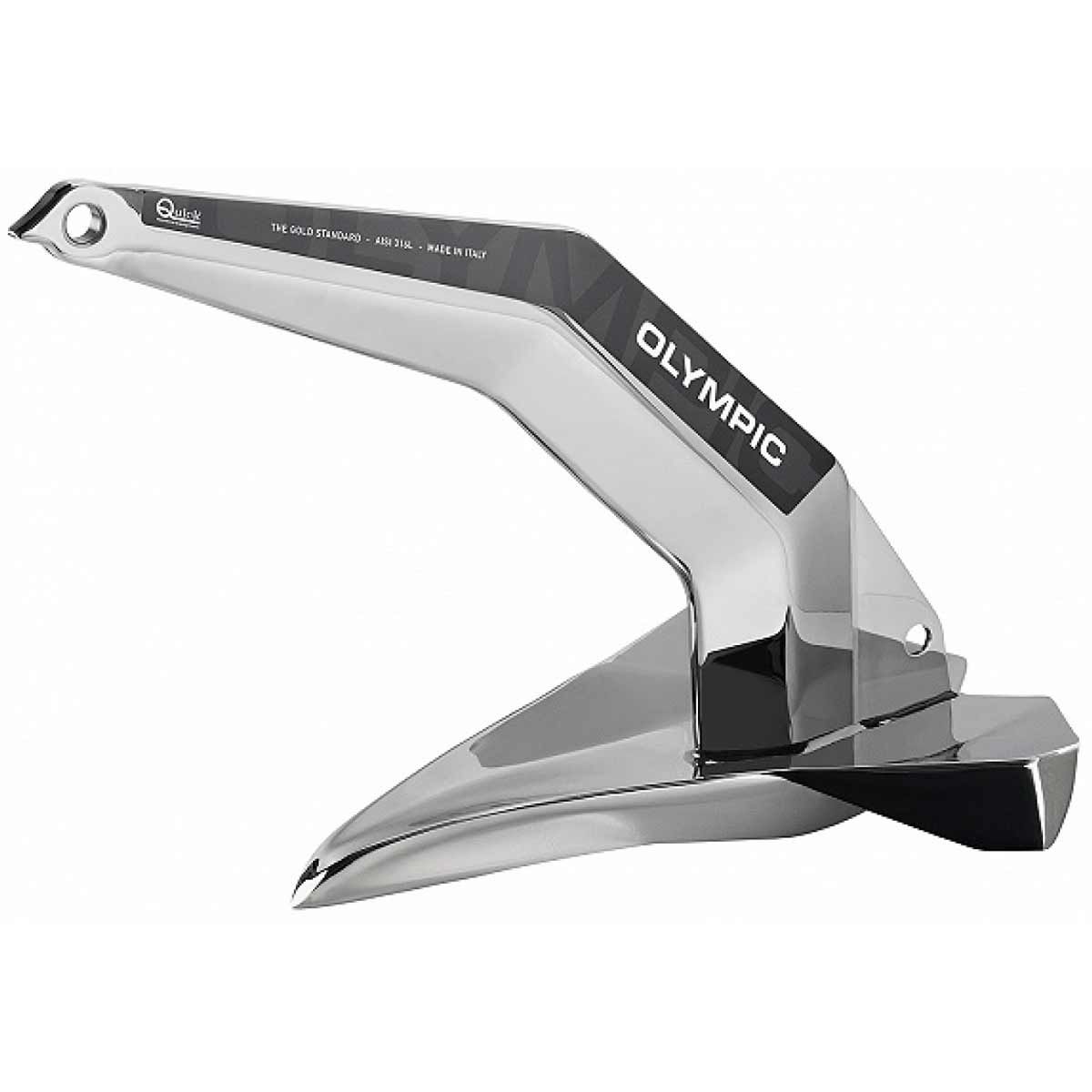

Quick Olympic anchor 45kg in polished stainless steel with a plough-shaped arm.
Anchor Specs:
? Weight: 45kg (99 lb)
? Recommended chain size: 12mm (15/32″)
? Boat length*: 18 meters (59 ft)
? Boat weight*: 30 tons (33 US tons)
? Material: AISI 316 Stainless steel with a polished finish
*NOTE: The indication may vary according to the boat type and the anchor-rode type.
Dimensions (see image for reference):
A: 534mm (21-1/32″)
B: 868.2mm (34-3/16″)
C: 23mm (29/32″)
D: 25mm (63/64″)
E: 730mm (28-47/64″)
F: 631mm (24-27/32″)
G: 369.2mm (14-17/32″)
H: 314.5mm (12-3/8″)
I: 396.2mm (15-19/32″)
The Quick Olympic swivel is available as an optional extra, see part number: Q-OS60S.
Weight – 34
Product Type – Deck Equipment > Anchoring > Anchors
