Description

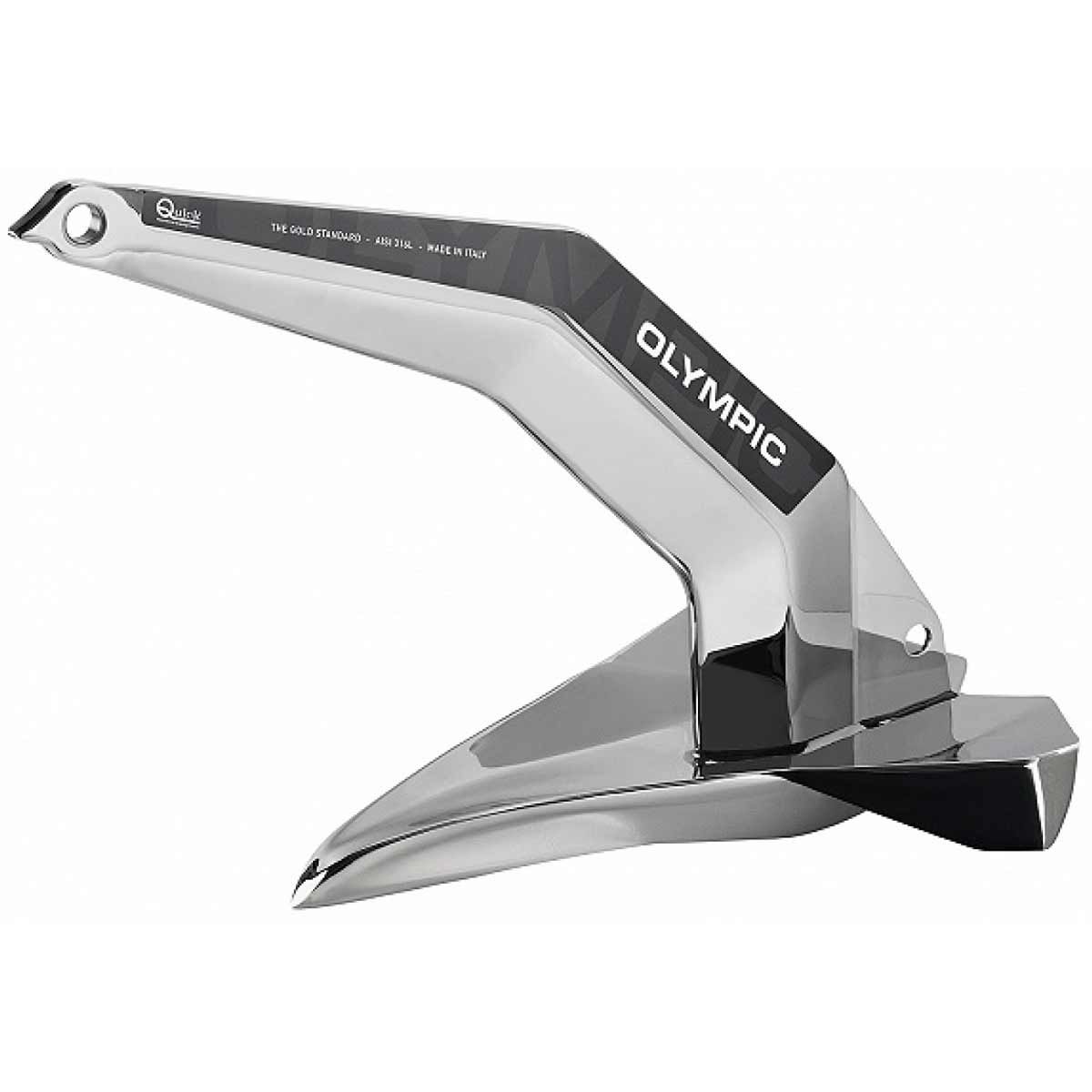

Quick Olympic anchor 20kg in polished stainless steel with a plough-shaped arm.
Anchor Specs:
? Weight: 20kg (44 lb)
? Recommended chain size: 8mm (5/16″)
? Boat length*: 12.6 meters (41 ft)
? Boat weight*: 10.2 tons (11.2 US tons)
? Material: AISI 316 Stainless steel with a polished finish
*NOTE: The indication may vary according to the boat type and the anchor-rode type.
Dimensions (see image for reference):
A: 409mm (16-7/64″)
B: 696.5mm (27-27/64″)
C: 17mm (43/64″)
D: 20mm (25/32″)
E: 566.5mm (22-5/16″)
F: 487.2mm (19-3/16″)
G: 287mm (11-19/64″)
H: 240mm (9-29/64″)
I: 320mm (12-19/32″)
The Quick Olympic swivel is available as an optional extra, see part number: Q-OS20S.
Weight – 16
Product Type – Deck Equipment > Anchoring > Anchors
