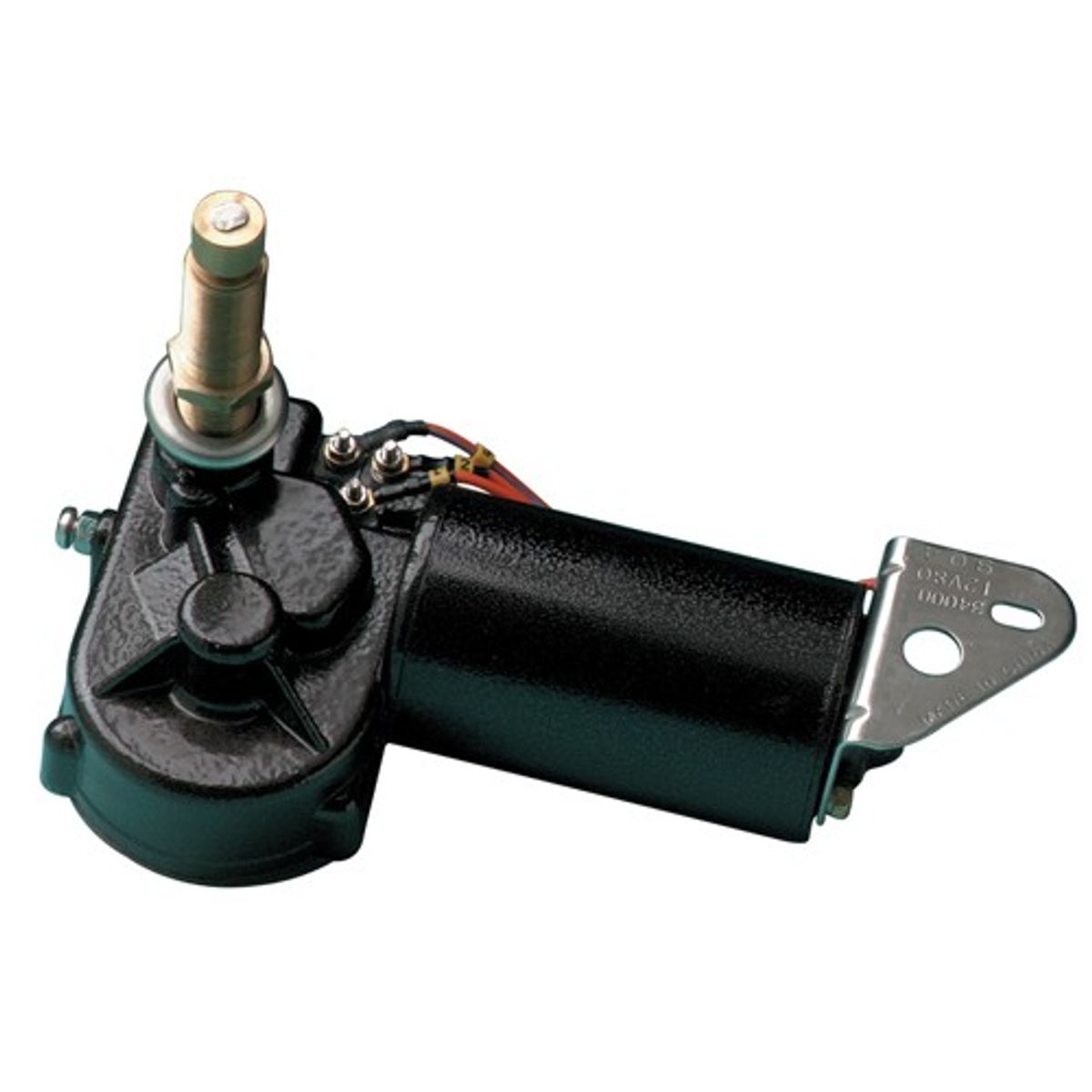

Marinco 34001 MRV wiper motor 12V with 2 speeds, 1-1/2″ shaft and 80 degree sweep.
Easily powers 22″ (559mm) x 22″ (559mm) deluxe arm/blade combinations, or a 20″ (508mm) x 20″ (508mm) premier arm/blade combination at sweep sets of 80ø or less.
Factory pre-set sweep of 80§ adjustable to 45§, 60§, 80§ or 110§
0.625″ (16mm) diameter shaft
Shaft length: 1.5″ (38mm) *includes 0.5″ (13mm) length of knurled arm fitting
Corrosion-resistant casing
Heavy-duty motor with right angle drive
Two-speed motor, can be operated as one speed
Solid brass knurled drive nut with brass and stainless steel drive shaft
Adjustable right or left self parking, coast to park
Includes 5 amp fuse and holder
Stainless steel fasteners and mounting bracket
Use with three-position switch (not included)
Compact size (L x W x D): 7.625″ (193mm) x 4″ (101mm) x 2″ (51mm)
Stall torque: 109 in-lbs (125 kgf/cm: 12.3 Nm)
Stall current: 11.5-13.0 amps
No load current: 0.5-1.2 amps
Weight – 1.61
Product Type – Cabin Equipment > Windscreen Wiper Systems > Wiper Motors
